LQM18NNR12K00D

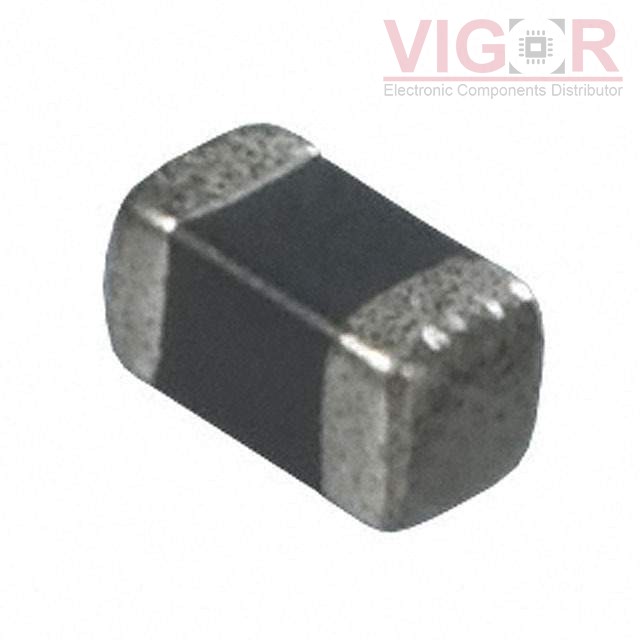

Image is for reference,
please contact us to get the real picture

Part No :: LQM18NNR12K00D

Manufacturer: TOKO / Murata

Description: FIXED IND 120NH 50MA 500 MOHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 11 - Aug 15 2025

DataSheet: LQM18NNR12K00D PDF

Availability: 0 pieces

Unit Price: ~~$0.07296~~

Current price of LQM18NNR12K00D is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LQM18NNR12K00D Specifications

Type	Description
Series:	LQM18
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Multilayer
Material - Core:	Ferrite
Inductance:	120 nH
Tolerance:	±10%
Current Rating (Amps):	50 mA
Current - Saturation (Isat):	-
Shielding:	Shielded
DC Resistance (DCR):	500mOhm Max
Q @ Freq:	15 @ 25MHz
Frequency - Self Resonant:	205MHz
Ratings:	-
Operating Temperature:	-40°C ~ 85°C
Inductance Frequency - Test:	25 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0603 (1608 Metric)
Supplier Device Package:	0603 (1608 Metric)
Size / Dimension:	0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max):	0.035" (0.90mm)
