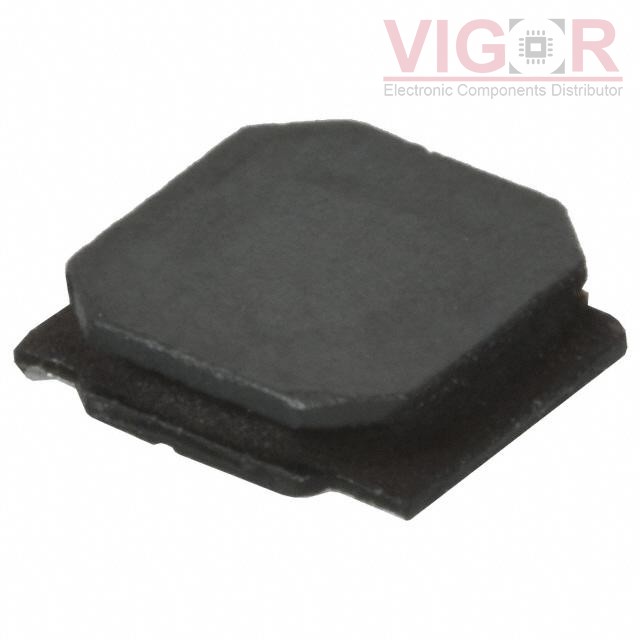

NR4012T220M

Image is for reference,
please contact us to get the real picture

Part No :: NR4012T220M

Manufacturer: TAIYO YUDEN

Description: FIXED IND 22UH 540MA 576 MOHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 31 - Aug 04 2025

DataSheet: NR4012T220M PDF

Availability: 4018 pieces

Unit Price: ~~$0.43000~~

Current price of NR4012T220M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NR4012T220M Specifications

Type	Description
Series:	NR
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	22 µH
Tolerance:	±20%
Current Rating (Amps):	540 mA
Current - Saturation (Isat):	510mA
Shielding:	Shielded
DC Resistance (DCR):	576mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	18MHz
Ratings:	-
Operating Temperature:	-25°C ~ 120°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max):	0.047" (1.20mm)
