MCL1005-220-R

MCL1005-220-R

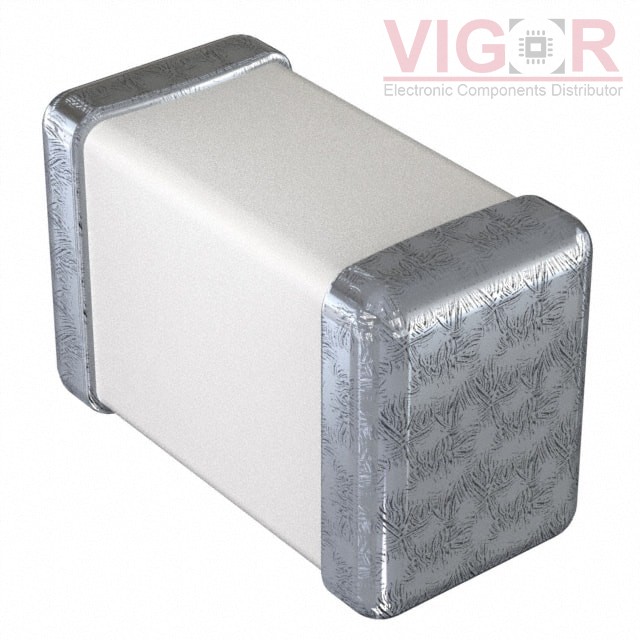

Image is for reference,
please contact us to get the real picture

Part No :

MCL1005-220-R

Manufacturer
PowerStor (Eaton)
Description
FIXED IND 22NH 300MA 600 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 15 - Jul 19 2025
DataSheet
MCL1005-220-R PDF
Availability
19990 pieces
Unit Price
$0.10000

Current price of MCL1005-220-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MCL1005-220-R Specifications
Type Description
Series:MCL1005
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Multilayer
Material - Core:-
Inductance:22 nH
Tolerance:±5%
Current Rating (Amps):300 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):600mOhm Max
Q @ Freq:8 @ 100MHz
Frequency - Self Resonant:1.9GHz
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:100 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:0402 (1005 Metric)
Supplier Device Package:0402
Size / Dimension:0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max):0.026" (0.65mm)
