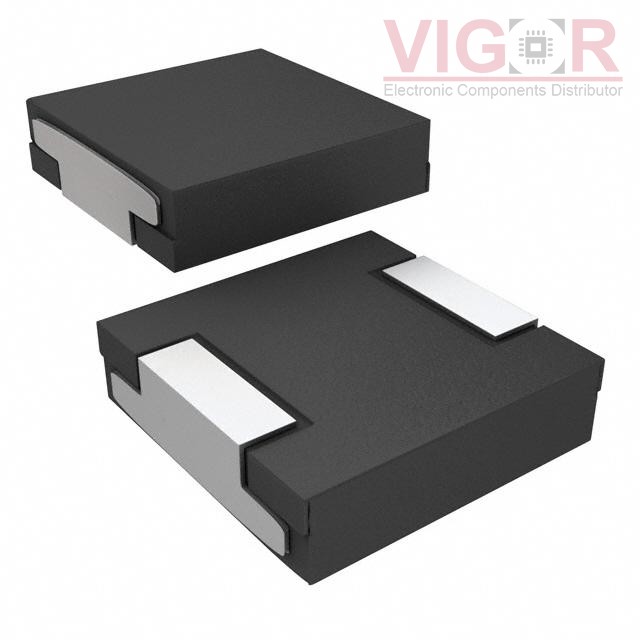

IHLP5050FDER220M5A

Image is for reference,
please contact us to get the real picture

Part No :: IHLP5050FDER220M5A

Manufacturer: Vishay / Dale

Description: FIXED IND 22UH 8.3A 33.49 MOHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 11 - Aug 15 2025

DataSheet: IHLP5050FDER220M5A PDF

Availability: 884 pieces

Unit Price: ~~$2.43000~~

Current price of IHLP5050FDER220M5A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IHLP5050FDER220M5A Specifications

Type	Description
Series:	IHLP-5050FD-5A
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Molded
Material - Core:	-
Inductance:	22 µH
Tolerance:	±20%
Current Rating (Amps):	8.3 A
Current - Saturation (Isat):	5.5A
Shielding:	Shielded
DC Resistance (DCR):	33.49mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	6.43MHz
Ratings:	AEC-Q200
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.522" L x 0.508" W (13.26mm x 12.90mm)
Height - Seated (Max):	0.252" (6.40mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

PM1812-470J-RC

FIXED IND 47UH 140MA 5 OHM SMD

HOT

RLF10160T-221MR70-D

FIXED IND 220UH 700MA 490.8 MOHM

HOT

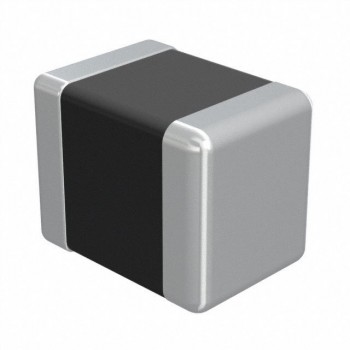

CB2518T101M
