IMC0805ERR68J01

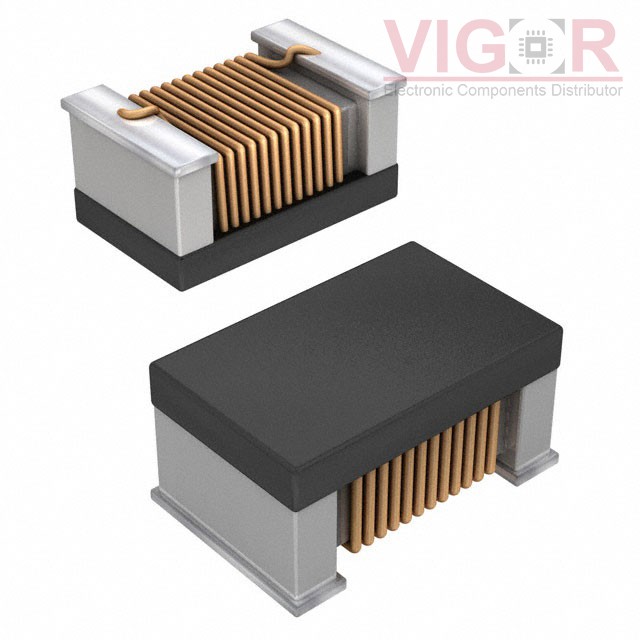

Image is for reference,
please contact us to get the real picture

Part No :: IMC0805ERR68J01

Manufacturer: Vishay / Dale

Description: FIXED IND 680NH 400MA 1.2 OHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 31 - Aug 04 2025

DataSheet: IMC0805ERR68J01 PDF

Availability: 0 pieces

Unit Price: ~~$0.12240~~

Current price of IMC0805ERR68J01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IMC0805ERR68J01 Specifications

Type	Description
Series:	IMC-0805-01
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	680 nH
Tolerance:	±5%
Current Rating (Amps):	400 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	1.2Ohm Max
Q @ Freq:	35 @ 100MHz
Frequency - Self Resonant:	188MHz
Ratings:	-
Operating Temperature:	-40°C ~ 105°C
Inductance Frequency - Test:	25.2 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0805 (2012 Metric)
Supplier Device Package:	0805 (2012 Metric)
Size / Dimension:	0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max):	0.055" (1.40mm)
