CDEP147NP-7R7MC-95

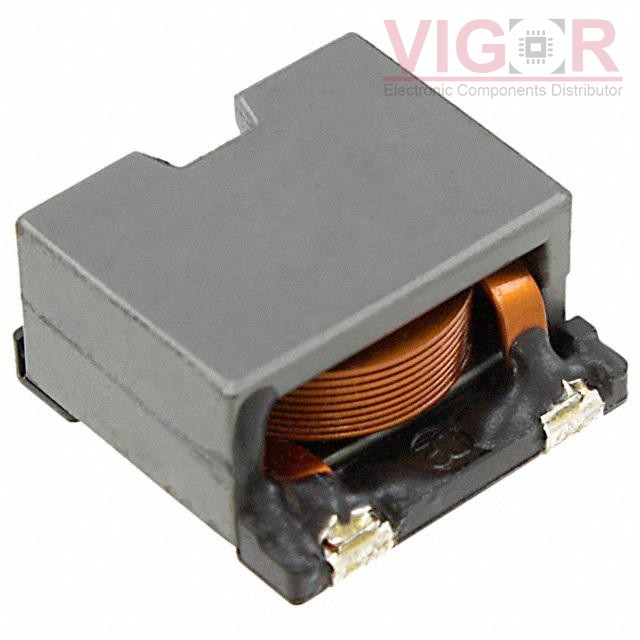

Image is for reference,
please contact us to get the real picture

Part No :: CDEP147NP-7R7MC-95

Manufacturer: Sumida Corporation

Description: FIXED IND 7.7UH 10A 9.85 MOHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 29 - Aug 02 2025

DataSheet: CDEP147NP-7R7MC-95 PDF

Availability: 0 pieces

Unit Price: ~~$1.82000~~

Current price of CDEP147NP-7R7MC-95 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CDEP147NP-7R7MC-95 Specifications

Type	Description
Series:	CDEP147
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	7.7 µH
Tolerance:	±20%
Current Rating (Amps):	10 A
Current - Saturation (Isat):	12.4A
Shielding:	Shielded
DC Resistance (DCR):	9.85mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.571" L x 0.571" W (14.50mm x 14.50mm)
Height - Seated (Max):	0.315" (8.00mm)
