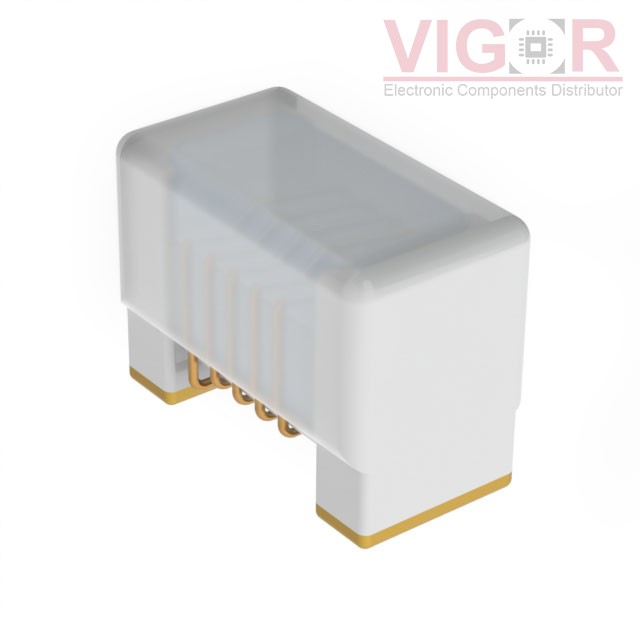

CW105550A-12NJ

Image is for reference,
please contact us to get the real picture

Part No :: CW105550A-12NJ

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 12NH 640MA 120MOHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 30 - Aug 03 2025

DataSheet: CW105550A-12NJ PDF

Availability: 770 pieces

Unit Price: ~~$0.25000~~

Current price of CW105550A-12NJ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CW105550A-12NJ Specifications

Type	Description
Series:	CW105550A
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	-
Material - Core:	Ceramic
Inductance:	12 nH
Tolerance:	±5%
Current Rating (Amps):	640 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	120mOhm Max
Q @ Freq:	26 @ 250MHz
Frequency - Self Resonant:	3.6GHz
Ratings:	AEC-Q200
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	250 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0402 (1005 Metric)
Supplier Device Package:	0402
Size / Dimension:	0.039" L x 0.022" W (1.00mm x 0.55mm)
Height - Seated (Max):	0.024" (0.60mm)
