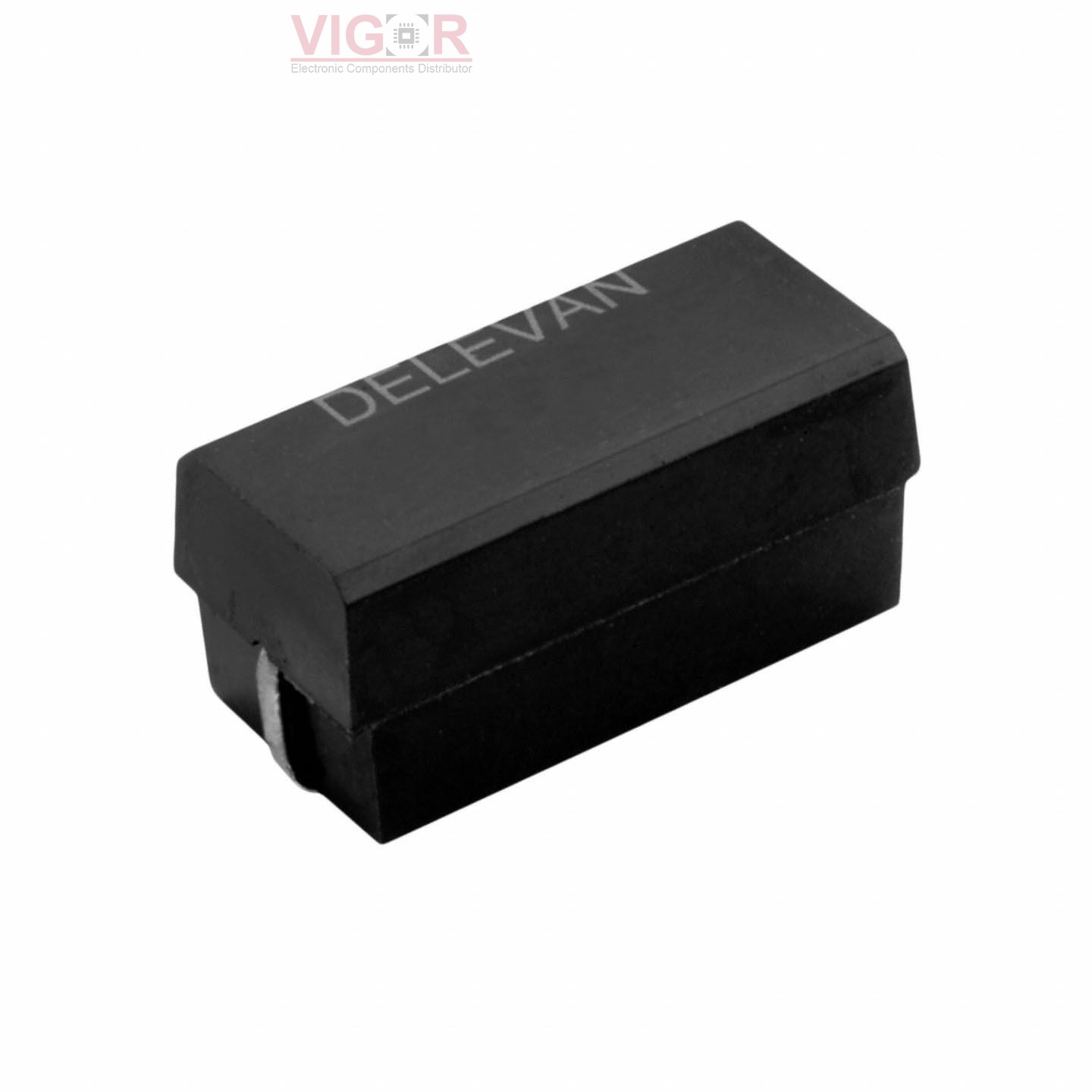

5500R-685K

Image is for reference,
please contact us to get the real picture

Part No :: 5500R-685K

Manufacturer: API Delevan

Description: FIXED IND 6.8MH 420MA 5.75 OHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 29 - Aug 02 2025

DataSheet: 5500R-685K PDF

Availability: 651 pieces

Unit Price: ~~$7.60000~~

Current price of 5500R-685K is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

5500R-685K Specifications

Type	Description
Series:	5500R
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	-
Material - Core:	Ferrite
Inductance:	6.8 mH
Tolerance:	±10%
Current Rating (Amps):	420 mA
Current - Saturation (Isat):	210mA
Shielding:	Unshielded
DC Resistance (DCR):	5.75Ohm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-55°C ~ 130°C
Inductance Frequency - Test:	1 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	1.050" L x 0.495" W (26.67mm x 12.57mm)
Height - Seated (Max):	0.520" (13.21mm)

Please confirm the specifications of the products when ordering.
