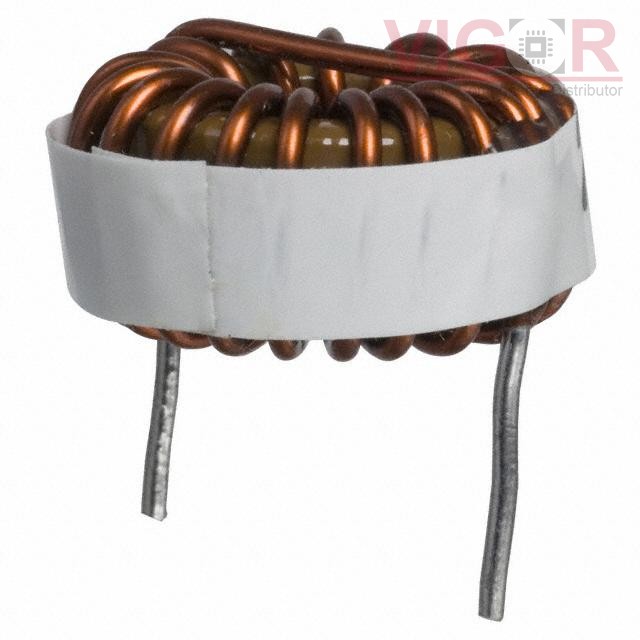

2306-H-RC

2306-H-RC

Image is for reference,
please contact us to get the real picture

Part No :

2306-H-RC

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 27UH 15.6A 8 MOHM TH
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 31 - Aug 04 2025
DataSheet
2306-H-RC PDF
Availability
103 pieces
Unit Price
$3.84000

Current price of 2306-H-RC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

2306-H-RC Specifications
Type Description
Series:2300
Package:Bulk
Part Status:Active
Type:Toroidal
Material - Core:Iron Powder
Inductance:27 µH
Tolerance:±15%
Current Rating (Amps):15.6 A
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):8mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-55°C ~ 105°C
Inductance Frequency - Test:1 kHz
Features:-
Mounting Type:Through Hole
Package / Case:Radial, Horizontal (Open)
Supplier Device Package:-
Size / Dimension:1.280" Dia (32.51mm)
Height - Seated (Max):0.650" (16.51mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

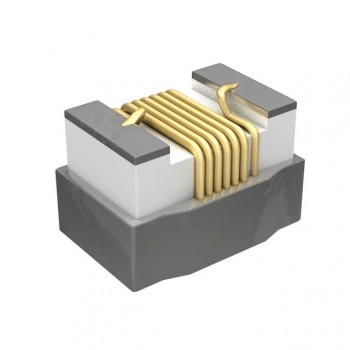

HOT B82498F3680J001

B82498F3680J001

FIXED IND 68NH 500MA 180 MOHM

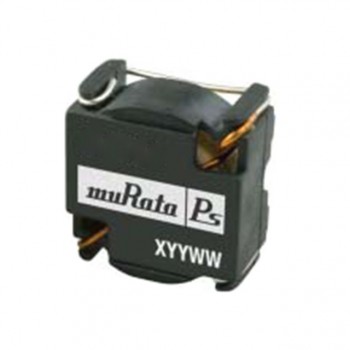

HOT 41221C

41221C

FIXED IND 220UH 1.03A 377 MOHM

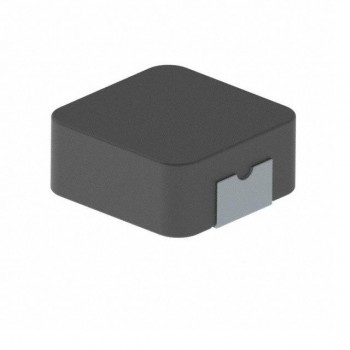

HOT HCM1A0703V2-1R0-R
