NLV25T-2R2J-PFD

NLV25T-2R2J-PFD

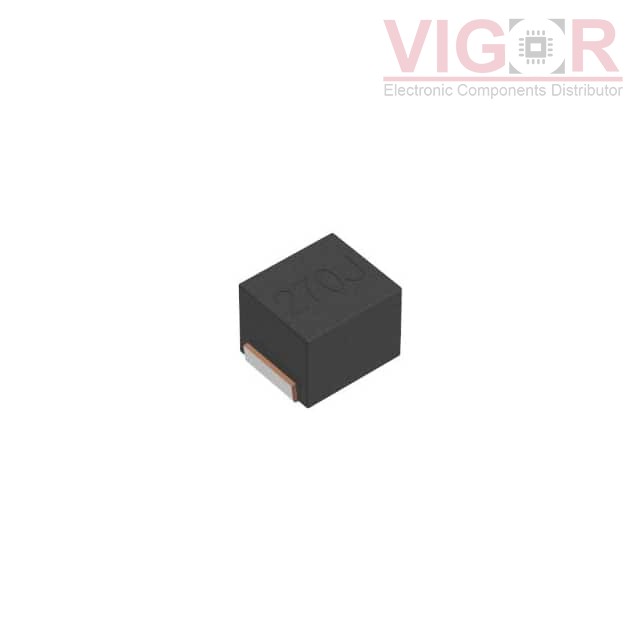

Image is for reference,
please contact us to get the real picture

Part No :

NLV25T-2R2J-PFD

Manufacturer
TDK Corporation
Description
FIXED IND 2.2UH 200MA 1.55 OHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 14 - Aug 18 2025
DataSheet
NLV25T-2R2J-PFD PDF
Availability
0 pieces
Unit Price
$0.12811

Current price of NLV25T-2R2J-PFD is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NLV25T-2R2J-PFD Specifications
Type Description
Series:NLV-PFD
Package:Tape & Reel (TR)
Part Status:Not For New Designs
Type:Wirewound
Material - Core:Ferrite
Inductance:2.2 µH
Tolerance:±5%
Current Rating (Amps):200 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):1.55Ohm Max
Q @ Freq:30 @ 7.96MHz
Frequency - Self Resonant:105MHz
Ratings:AEC-Q200
Operating Temperature:-40°C ~ 105°C
Inductance Frequency - Test:7.96 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:1008 (2520 Metric)
Supplier Device Package:1008 (2520 Metric)
Size / Dimension:0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max):0.075" (1.90mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

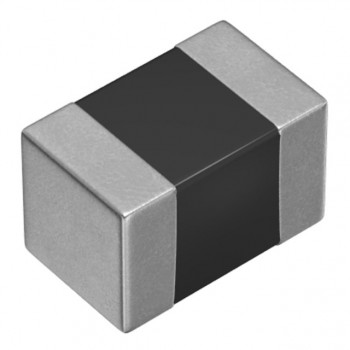

HOT MLZ2012DR47DTD25

MLZ2012DR47DTD25

FIXED IND 470NH 700MA 180 MOHM

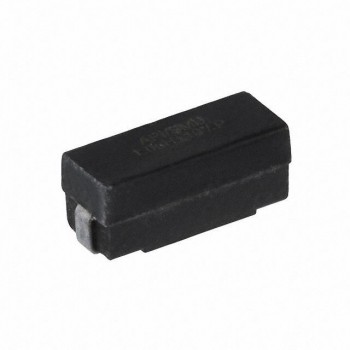

HOT P1330R-123G

P1330R-123G

FIXED IND 12UH 912MA 252 MOHM

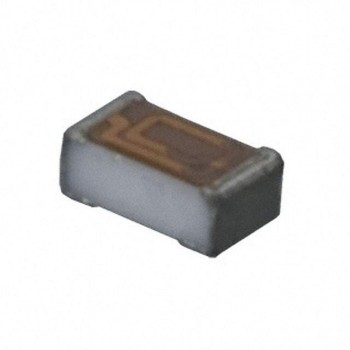

HOT LQP15MN1N7W02D
