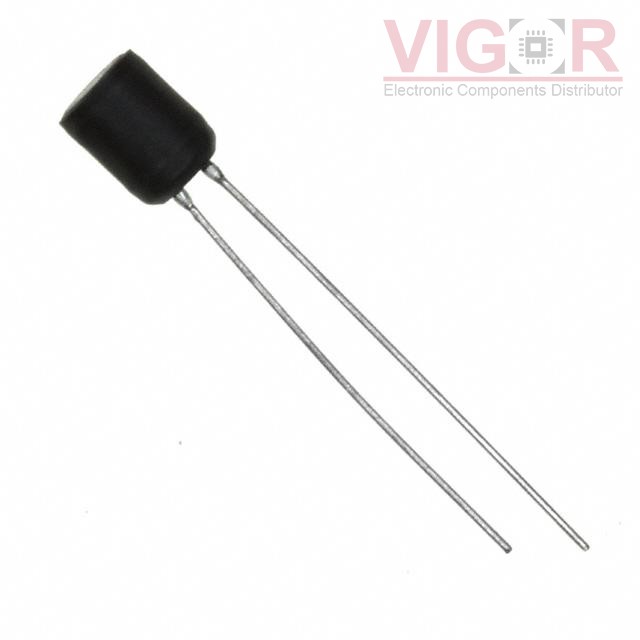

22R685C

Image is for reference,
please contact us to get the real picture

Part No :: 22R685C

Manufacturer: Murata Power Solutions

Description: FIXED IND 6.8MH 72MA 22 OHM TH

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 29 - Aug 02 2025

DataSheet: 22R685C PDF

Availability: 571 pieces

Unit Price: ~~$0.59000~~

Current price of 22R685C is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

22R685C Specifications

Type	Description
Series:	2200R
Package:	Bulk
Part Status:	Active
Type:	Wirewound
Material - Core:	-
Inductance:	6.8 mH
Tolerance:	±10%
Current Rating (Amps):	72 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	22Ohm Max
Q @ Freq:	145 @ 150kHz
Frequency - Self Resonant:	850kHz
Ratings:	-
Operating Temperature:	-25°C ~ 70°C
Inductance Frequency - Test:	1 kHz
Features:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Vertical Cylinder
Supplier Device Package:	-
Size / Dimension:	0.256" Dia (6.50mm)
Height - Seated (Max):	0.413" (10.50mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

NS10145T6R8NNA

FIXED IND 6.8UH 4.22A 24 MOHM

HOT

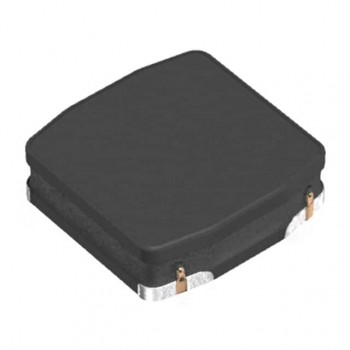

VLS4012CX-1R0M-1

FIXED IND 1UH 3.44A 46 MOHM SMD

HOT

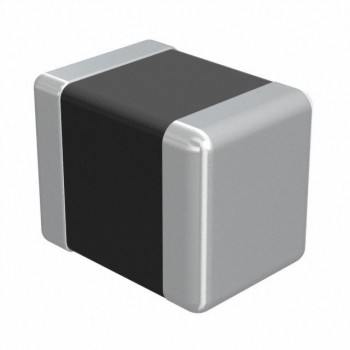

LBC2518T471K
