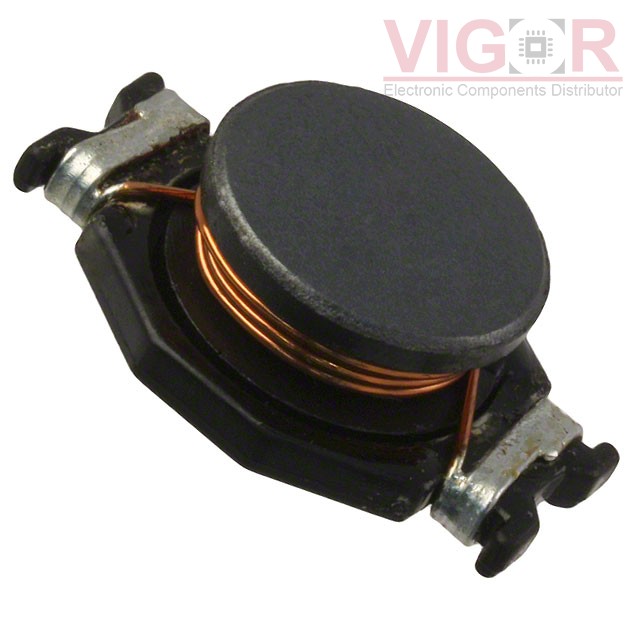

SDR2207-681KL

SDR2207-681KL

Image is for reference,
please contact us to get the real picture

Part No :

SDR2207-681KL

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 680UH 700MA 1.1OHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 06 - Aug 10 2025
DataSheet
SDR2207-681KL PDF
Availability
0 pieces
Unit Price
$0.83160

Current price of SDR2207-681KL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SDR2207-681KL Specifications
Type Description
Series:SDR2207
Package:Tape & Reel (TR)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:680 µH
Tolerance:±10%
Current Rating (Amps):700 mA
Current - Saturation (Isat):1.2A
Shielding:Unshielded
DC Resistance (DCR):1.1Ohm Max
Q @ Freq:16 @ 1MHz
Frequency - Self Resonant:4.2MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.866" L x 0.591" W (22.00mm x 15.00mm)
Height - Seated (Max):0.307" (7.80mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT IHLM2525CZER1R5M01

IHLM2525CZER1R5M01

FIXED IND 1.5UH 9A 15 MOHM SMD
HOT DFEG10040D-1R5M=P3

DFEG10040D-1R5M=P3

FIXED IND 1.5UH 14A 5 MOHM SMD

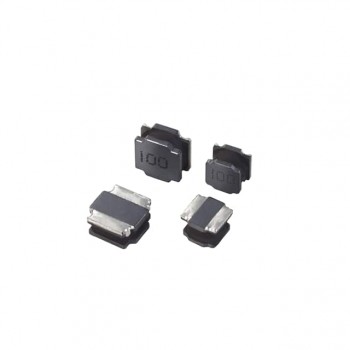

HOT TYA2520101R0M-10
