NLCV32T-2R2M-PFD

NLCV32T-2R2M-PFD

Image is for reference,
please contact us to get the real picture

Part No :

NLCV32T-2R2M-PFD

Manufacturer
TDK Corporation
Description
FIXED IND 2.2UH 770MA 169 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 09 - Aug 13 2025
DataSheet
NLCV32T-2R2M-PFD PDF
Availability
0 pieces
Unit Price
$0.12811

Current price of NLCV32T-2R2M-PFD is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NLCV32T-2R2M-PFD Specifications
Type Description
Series:NLCV-PFD
Package:Tape & Reel (TR)
Part Status:Not For New Designs
Type:Wirewound
Material - Core:Ferrite
Inductance:2.2 µH
Tolerance:±20%
Current Rating (Amps):770 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):169mOhm Max
Q @ Freq:10 @ 7.96MHz
Frequency - Self Resonant:68MHz
Ratings:AEC-Q200
Operating Temperature:-40°C ~ 105°C
Inductance Frequency - Test:7.96 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:1210 (3225 Metric)
Supplier Device Package:1210 (3225 Metric)
Size / Dimension:0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max):0.094" (2.40mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT IMC1210EB1R5K

IMC1210EB1R5K

FIXED IND 1.5UH 370MA 850 MOHM

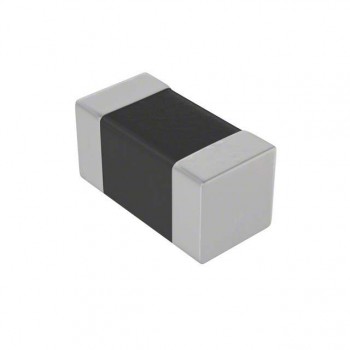

HOT L0603C3N3SRMST

L0603C3N3SRMST

FIXED IND 3.3NH 300MA 120 MOHM

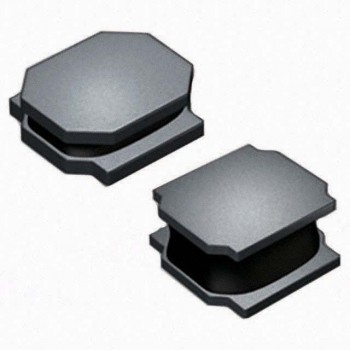

HOT NRH3010T220MN
