LBR2012T220K

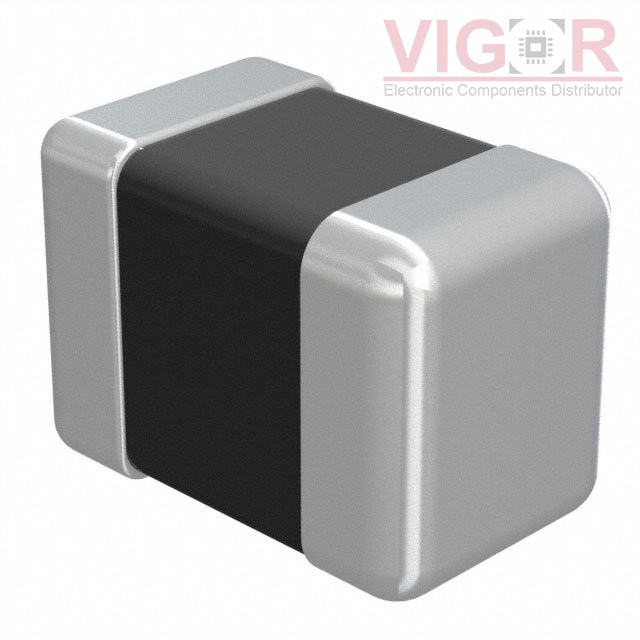

Image is for reference,
please contact us to get the real picture

Part No :: LBR2012T220K

Manufacturer: TAIYO YUDEN

Description: FIXED IND 22UH 100MA 1 OHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 11 - Aug 15 2025

DataSheet: LBR2012T220K PDF

Availability: 39066 pieces

Unit Price: ~~$0.12000~~

Current price of LBR2012T220K is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LBR2012T220K Specifications

Type	Description
Series:	LB, R Type
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	-
Inductance:	22 µH
Tolerance:	±10%
Current Rating (Amps):	100 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	1Ohm
Q @ Freq:	-
Frequency - Self Resonant:	16MHz
Ratings:	-
Operating Temperature:	-40°C ~ 105°C
Inductance Frequency - Test:	2.52 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0805 (2012 Metric)
Supplier Device Package:	0805 (2012 Metric)
Size / Dimension:	0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max):	0.057" (1.45mm)
