SDE1006A-560K

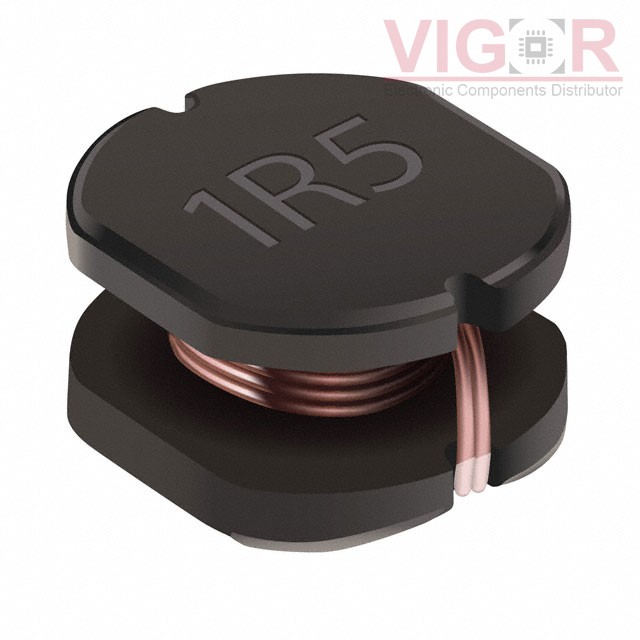

Image is for reference,
please contact us to get the real picture

Part No :: SDE1006A-560K

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 56UH 1.7A 190 MOHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 01 - Aug 05 2025

DataSheet: SDE1006A-560K PDF

Availability: 438 pieces

Unit Price: ~~$0.97000~~

Current price of SDE1006A-560K is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SDE1006A-560K Specifications

Type	Description
Series:	SDE1006A
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	56 µH
Tolerance:	±10%
Current Rating (Amps):	1.7 A
Current - Saturation (Isat):	1.8A
Shielding:	Unshielded
DC Resistance (DCR):	190mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	10.2MHz
Ratings:	AEC-Q200
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	1 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.394" L x 0.354" W (10.00mm x 9.00mm)
Height - Seated (Max):	0.228" (5.80mm)
