PM5022S-150M-RC

PM5022S-150M-RC

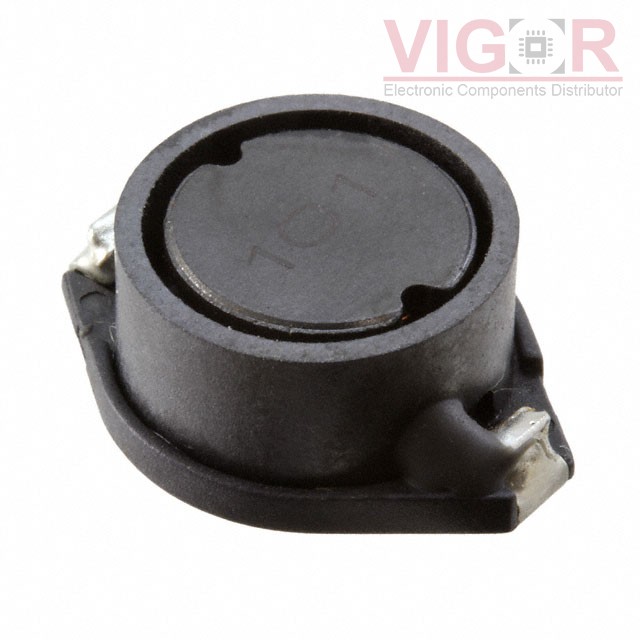

Image is for reference,
please contact us to get the real picture

Part No :

PM5022S-150M-RC

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 15UH 3.6A 39 MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 11 - Aug 15 2025
DataSheet
PM5022S-150M-RC PDF
Availability
0 pieces
Unit Price
$0.46500

Current price of PM5022S-150M-RC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PM5022S-150M-RC Specifications
Type Description
Series:PM5022S
Package:Tape & Reel (TR)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:15 µH
Tolerance:±20%
Current Rating (Amps):3.6 A
Current - Saturation (Isat):7.2A
Shielding:Shielded
DC Resistance (DCR):39mOhm
Q @ Freq:53 @ 2.52MHz
Frequency - Self Resonant:17.5MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.720" L x 0.551" W (18.30mm x 14.00mm)
Height - Seated (Max):0.280" (7.10mm)
