MPXV1D0520LR15

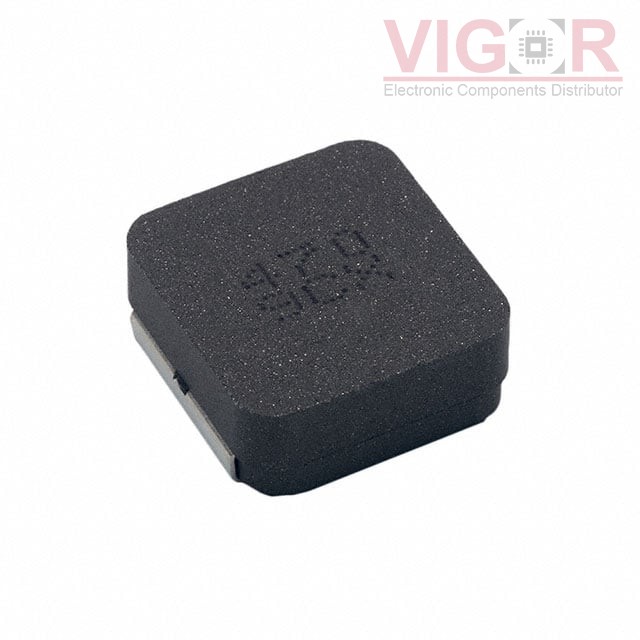

Image is for reference,
please contact us to get the real picture

Part No :: MPXV1D0520LR15

Manufacturer: KEMET

Description: FIXED IND 150NH 16.9A 3.9 MOHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 05 - Aug 09 2025

DataSheet: MPXV1D0520LR15 PDF

Availability: 955 pieces

Unit Price: ~~$1.99000~~

Current price of MPXV1D0520LR15 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MPXV1D0520LR15 Specifications

Type	Description
Series:	MPXV
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	-
Material - Core:	Metal Composite
Inductance:	150 nH
Tolerance:	±20%
Current Rating (Amps):	16.9 A
Current - Saturation (Isat):	22A
Shielding:	Shielded
DC Resistance (DCR):	3.9mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	190MHz
Ratings:	AEC-Q200
Operating Temperature:	-55°C ~ 155°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.209" L x 0.197" W (5.30mm x 5.00mm)
Height - Seated (Max):	0.079" (2.00mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
