744071220

744071220

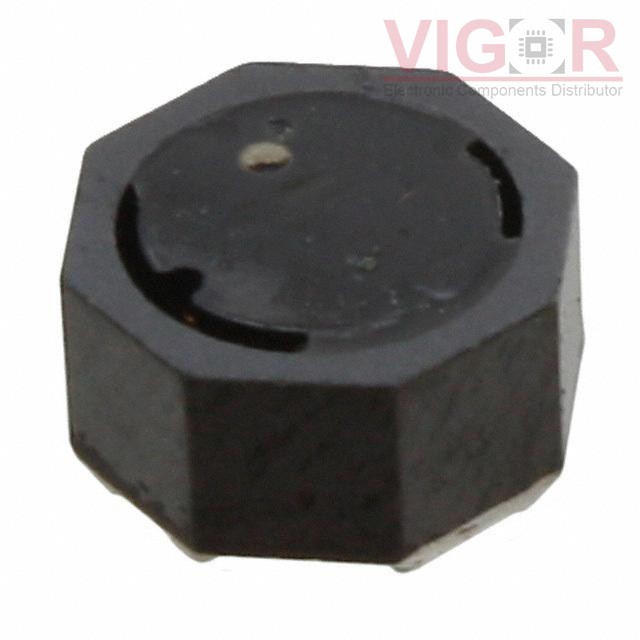

Image is for reference,
please contact us to get the real picture

Part No :

744071220

Manufacturer
Würth Elektronik Midcom
Description
FIXED IND 22UH 2.3A 80 MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 06 - Aug 10 2025
DataSheet
744071220 PDF
Availability
687 pieces
Unit Price
$2.01000

Current price of 744071220 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

744071220 Specifications
Type Description
Series:WE-TPC
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:22 µH
Tolerance:±30%
Current Rating (Amps):2.3 A
Current - Saturation (Isat):1.9A
Shielding:Shielded
DC Resistance (DCR):80mOhm Max
Q @ Freq:-
Frequency - Self Resonant:16MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.315" L x 0.315" W (8.00mm x 8.00mm)
Height - Seated (Max):0.181" (4.60mm)
