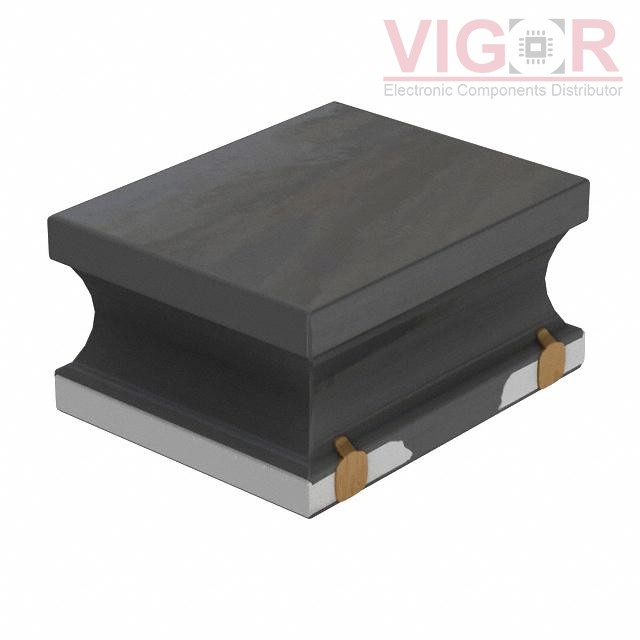

VLS201612HBX-R24M-1

VLS201612HBX-R24M-1

Image is for reference,
please contact us to get the real picture

Part No :

VLS201612HBX-R24M-1

Manufacturer
TDK Corporation
Description
FIXED IND 240NH 5.65A 29 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 07 - Aug 11 2025
DataSheet
VLS201612HBX-R24M-1 PDF
Availability
7604 pieces
Unit Price
$0.61000

Current price of VLS201612HBX-R24M-1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

VLS201612HBX-R24M-1 Specifications
Type Description
Series:VLS-HBX-1
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Metal
Inductance:240 nH
Tolerance:±20%
Current Rating (Amps):5.65 A
Current - Saturation (Isat):4.25A
Shielding:Shielded
DC Resistance (DCR):29mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-40°C ~ 105°C
Inductance Frequency - Test:1 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:0806 (2016 Metric)
Supplier Device Package:0806 (2016 Metric)
Size / Dimension:0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max):0.047" (1.20mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

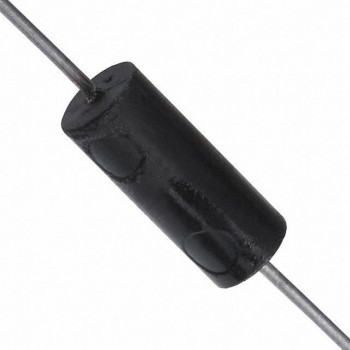

HOT 1641-105K

1641-105K

FIXED IND 1MH 70MA 17.5 OHM TH
HOT LQW15AN18NG80D

LQW15AN18NG80D

FIXED IND 18NH 1.05A 130 MOHM

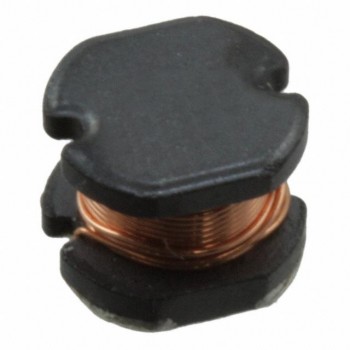

HOT 24151C
