SRR1806-220M

SRR1806-220M

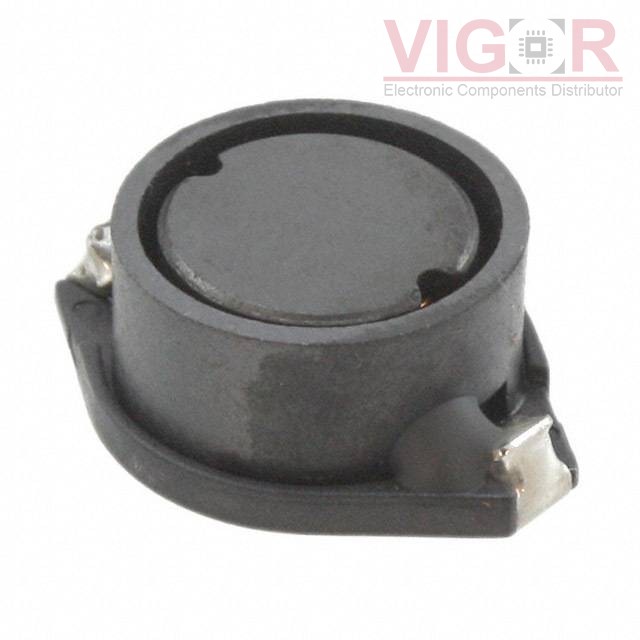

Image is for reference,
please contact us to get the real picture

Part No :

SRR1806-220M

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 22UH 3A 53 MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 04 - Jul 08 2025
DataSheet
SRR1806-220M PDF
Availability
0 pieces
Unit Price
$1.19000

Current price of SRR1806-220M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SRR1806-220M Specifications
Type Description
Series:SRR1806
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:22 µH
Tolerance:±20%
Current Rating (Amps):3 A
Current - Saturation (Isat):6.2A
Shielding:Shielded
DC Resistance (DCR):53mOhm
Q @ Freq:51 @ 2.52MHz
Frequency - Self Resonant:16MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.720" L x 0.551" W (18.30mm x 14.00mm)
Height - Seated (Max):0.280" (7.10mm)
