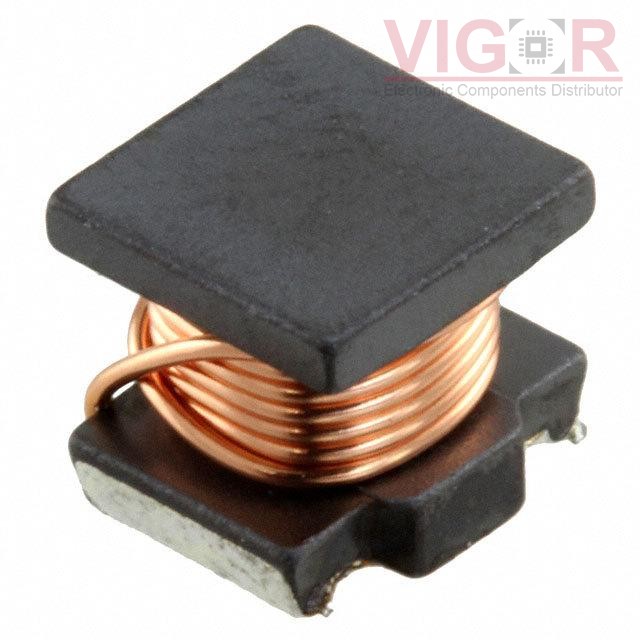

LQH55DN220M03L

Image is for reference,
please contact us to get the real picture

Part No :: LQH55DN220M03L

Manufacturer: TOKO / Murata

Description: FIXED IND 22UH 1.2A 266 MOHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 03 - Aug 07 2025

DataSheet: LQH55DN220M03L PDF

Availability: 184 pieces

Unit Price: ~~$1.58000~~

Current price of LQH55DN220M03L is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LQH55DN220M03L Specifications

Type	Description
Series:	LQH55
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	22 µH
Tolerance:	±20%
Current Rating (Amps):	1.2 A
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	266mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	15MHz
Ratings:	-
Operating Temperature:	-40°C ~ 85°C
Inductance Frequency - Test:	1 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	2220 (5750 Metric)
Supplier Device Package:	2220 (5650 Metric)
Size / Dimension:	0.224" L x 0.197" W (5.70mm x 5.00mm)
Height - Seated (Max):	0.197" (5.00mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

LQP03TG47NJ02D

FIXED IND 47NH 100MA 5.2 OHM SMD

HOT

83421C

FIXED IND 420NH 3A 24 MOHM SMD

HOT

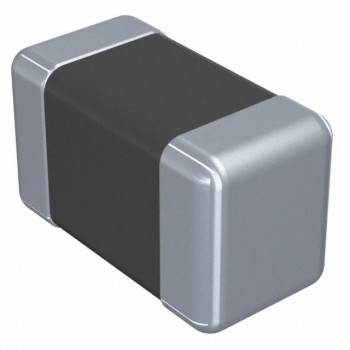

LK2125R12K-T
