EST1060T151MDGA

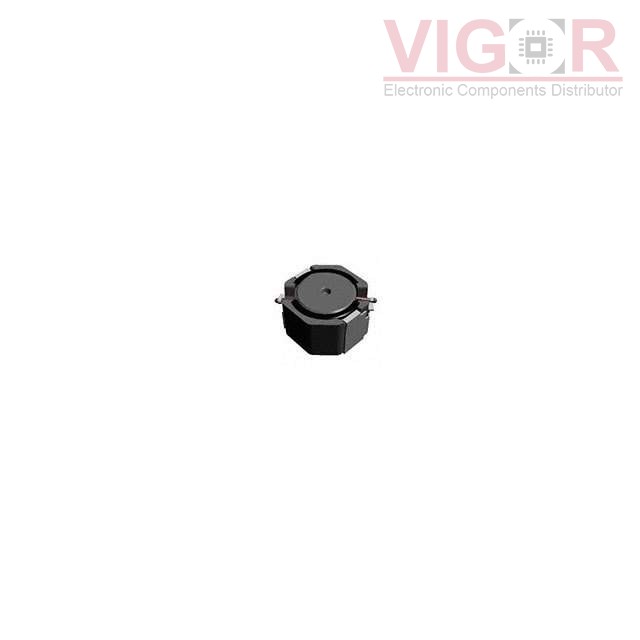

Image is for reference,
please contact us to get the real picture

Part No :: EST1060T151MDGA

Manufacturer: TAIYO YUDEN

Description: FIXED IND 150UH 1.2A 295MOHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 06 - Aug 10 2025

DataSheet: EST1060T151MDGA PDF

Availability: 0 pieces

Unit Price: ~~$1.76000~~

Current price of EST1060T151MDGA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

EST1060T151MDGA Specifications

Type	Description
Series:	ES, T Type
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	150 µH
Tolerance:	±20%
Current Rating (Amps):	1.2 A
Current - Saturation (Isat):	1.2A
Shielding:	Shielded
DC Resistance (DCR):	295mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	3.9MHz
Ratings:	AEC-Q200
Operating Temperature:	-55°C ~ 150°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.398" L x 0.394" W (10.10mm x 10.00mm)
Height - Seated (Max):	0.248" (6.30mm)
