PM74SB-220M-RC

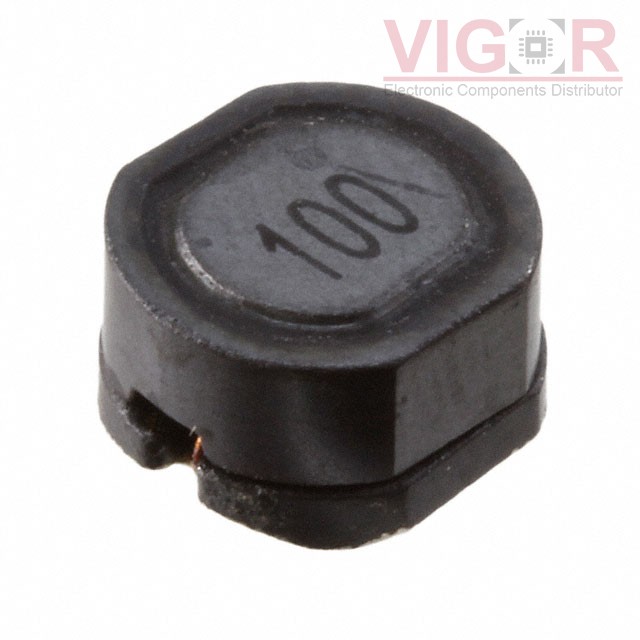

Image is for reference,
please contact us to get the real picture

Part No :: PM74SB-220M-RC

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 22UH 1.12A 130MOHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 08 - Aug 12 2025

DataSheet: PM74SB-220M-RC PDF

Availability: 0 pieces

Unit Price: ~~$0.76500~~

Current price of PM74SB-220M-RC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PM74SB-220M-RC Specifications

Type	Description
Series:	PM74SB
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	22 µH
Tolerance:	±20%
Current Rating (Amps):	1.12 A
Current - Saturation (Isat):	1.47A
Shielding:	Shielded
DC Resistance (DCR):	130mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	18MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.307" L x 0.276" W (7.80mm x 7.00mm)
Height - Seated (Max):	0.193" (4.90mm)
