IHSM3825ER220L

IHSM3825ER220L

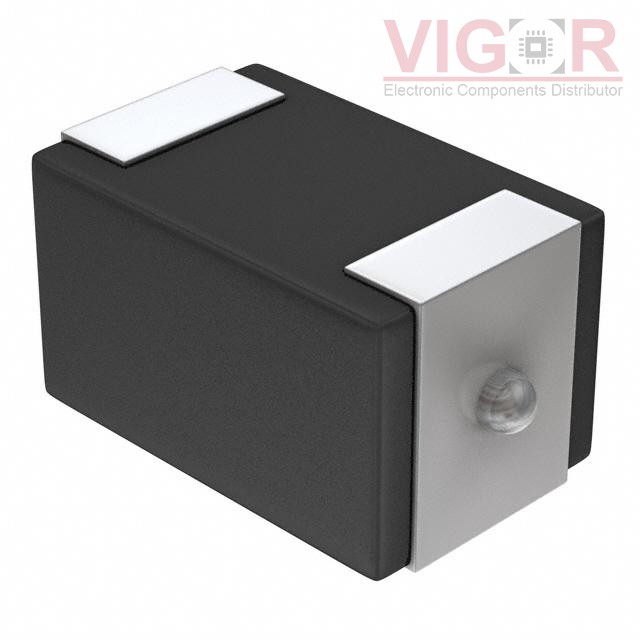

Image is for reference,
please contact us to get the real picture

Part No :

IHSM3825ER220L

Manufacturer
Vishay / Dale
Description
FIXED IND 22UH 1.05A 336 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 19 - Aug 23 2025
DataSheet
IHSM3825ER220L PDF
Availability
0 pieces
Unit Price
$2.63500

Current price of IHSM3825ER220L is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IHSM3825ER220L Specifications
Type Description
Series:IHSM-3825
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:-
Material - Core:Ferrite
Inductance:22 µH
Tolerance:±15%
Current Rating (Amps):1.05 A
Current - Saturation (Isat):960mA
Shielding:Unshielded
DC Resistance (DCR):336mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:1 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.440" L x 0.250" W (11.18mm x 6.35mm)
Height - Seated (Max):0.225" (5.72mm)
