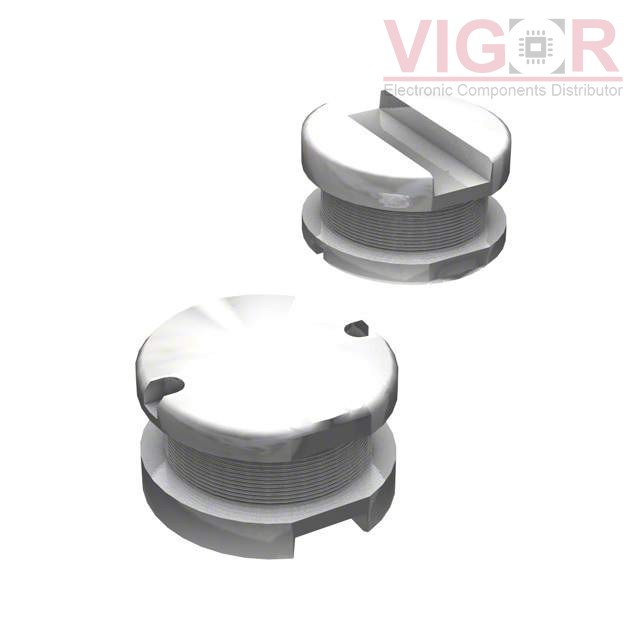

SDR1006-470KL

SDR1006-470KL

Image is for reference,
please contact us to get the real picture

Part No :

SDR1006-470KL

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 47UH 1.25A 170MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 13 - Aug 17 2025
DataSheet
SDR1006-470KL PDF
Availability
5973 pieces
Unit Price
$0.88000

Current price of SDR1006-470KL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SDR1006-470KL Specifications
Type Description
Series:SDR1006
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:47 µH
Tolerance:±10%
Current Rating (Amps):1.25 A
Current - Saturation (Isat):2.3A
Shielding:Unshielded
DC Resistance (DCR):170mOhm Max
Q @ Freq:20 @ 2.52MHz
Frequency - Self Resonant:8MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:1 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.386" L x 0.386" W (9.80mm x 9.80mm)
Height - Seated (Max):0.228" (5.80mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT LQW2UASR22J00L

LQW2UASR22J00L

FIXED IND 220NH 500MA 840 MOHM
HOT IMC1812RV1R0K

IMC1812RV1R0K

FIXED IND 1UH 450MA 500 MOHM SMD

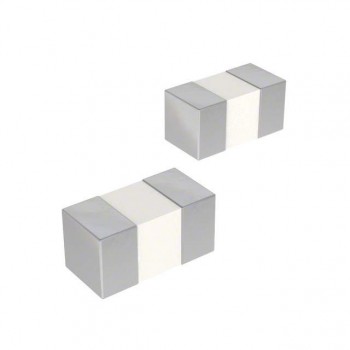

HOT CI160808-68NJ
