103-561H

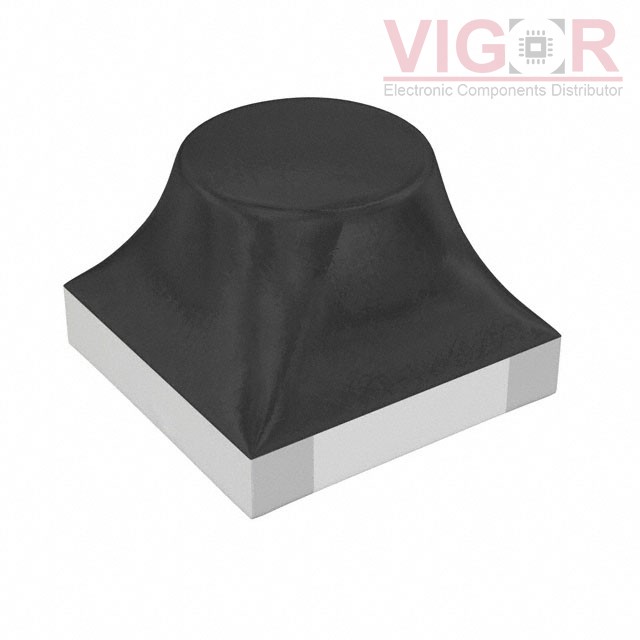

Image is for reference,
please contact us to get the real picture

Part No :: 103-561H

Manufacturer: API Delevan

Description: FIXED IND 560NH 590MA 278 MOHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 28 - Aug 01 2025

DataSheet: 103-561H PDF

Availability: 0 pieces

Unit Price: ~~$12.34905~~

Current price of 103-561H is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

103-561H Specifications

Type	Description
Series:	103
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	-
Material - Core:	Ferrite
Inductance:	560 nH
Tolerance:	±3%
Current Rating (Amps):	590 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	278mOhm Max
Q @ Freq:	22 @ 25MHz
Frequency - Self Resonant:	195MHz
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	25 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard, 2 Lead
Supplier Device Package:	-
Size / Dimension:	0.100" L x 0.100" W (2.54mm x 2.54mm)
Height - Seated (Max):	0.075" (1.91mm)
