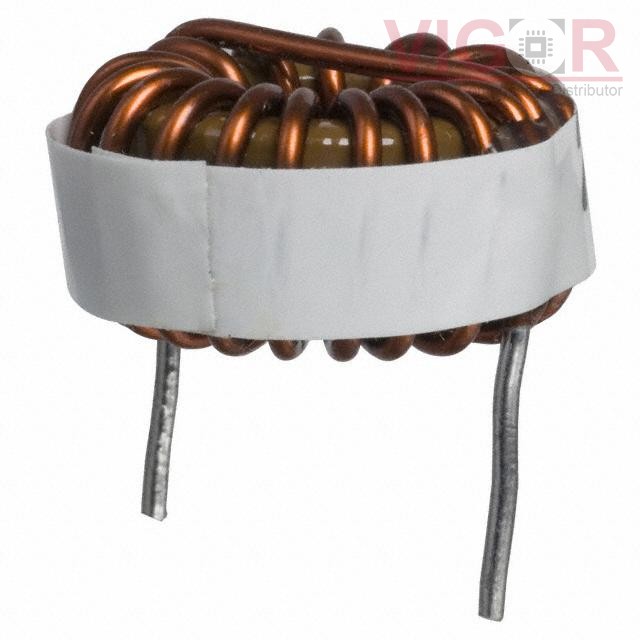

2223-H-RC

Image is for reference,
please contact us to get the real picture

Part No :: 2223-H-RC

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 820UH 2A 260 MOHM TH

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 09 - Aug 13 2025

DataSheet: 2223-H-RC PDF

Availability: 0 pieces

Unit Price: ~~$2.34359~~

Current price of 2223-H-RC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

2223-H-RC Specifications

Type	Description
Series:	2200
Package:	Bulk
Part Status:	Active
Type:	Toroidal
Material - Core:	Iron Powder
Inductance:	820 µH
Tolerance:	±15%
Current Rating (Amps):	2 A
Current - Saturation (Isat):	-
Shielding:	Shielded
DC Resistance (DCR):	260mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-55°C ~ 105°C
Inductance Frequency - Test:	1 kHz
Features:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Horizontal (Open)
Supplier Device Package:	-
Size / Dimension:	0.950" Dia (24.13mm)
Height - Seated (Max):	0.550" (13.97mm)
