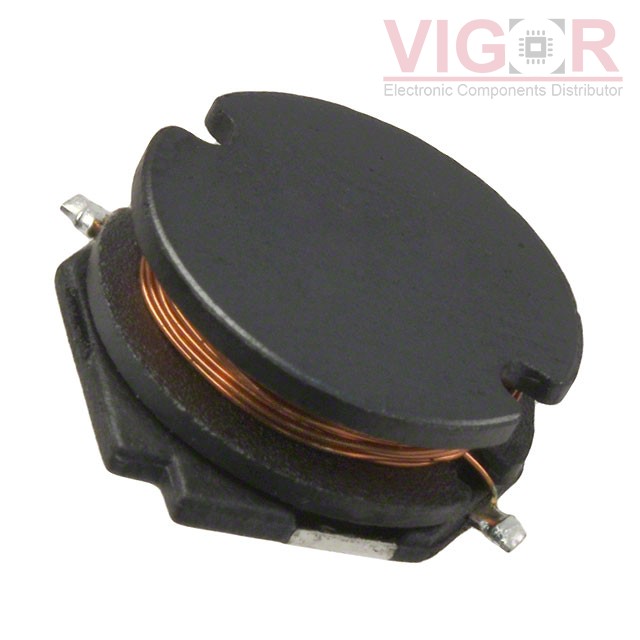

SDR1305-680M

Image is for reference,
please contact us to get the real picture

Part No :: SDR1305-680M

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 68UH 1.65A 165MOHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 29 - Aug 02 2025

DataSheet: SDR1305-680M PDF

Availability: 0 pieces

Unit Price: ~~$0.40480~~

Current price of SDR1305-680M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SDR1305-680M Specifications

Type	Description
Series:	SDR1305
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	68 µH
Tolerance:	±20%
Current Rating (Amps):	1.65 A
Current - Saturation (Isat):	1.8A
Shielding:	Unshielded
DC Resistance (DCR):	165mOhm Max
Q @ Freq:	22 @ 2.52MHz
Frequency - Self Resonant:	11MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.500" L x 0.500" W (12.70mm x 12.70mm)
Height - Seated (Max):	0.201" (5.10mm)

Please confirm the specifications of the products when ordering.
