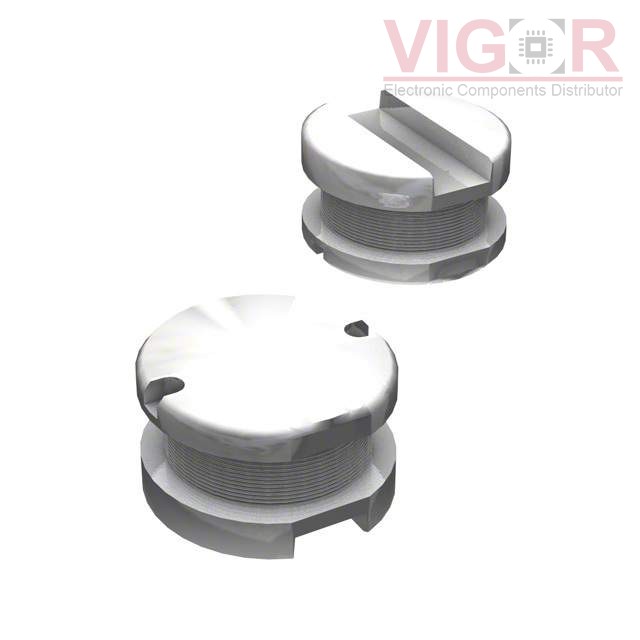

SDR1006-680KL

SDR1006-680KL

Image is for reference,
please contact us to get the real picture

Part No :

SDR1006-680KL

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 68UH 1.1A 220 MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 11 - Aug 15 2025
DataSheet
SDR1006-680KL PDF
Availability
4384 pieces
Unit Price
$0.88000

Current price of SDR1006-680KL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SDR1006-680KL Specifications
Type Description
Series:SDR1006
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:68 µH
Tolerance:±10%
Current Rating (Amps):1.1 A
Current - Saturation (Isat):2A
Shielding:Unshielded
DC Resistance (DCR):220mOhm Max
Q @ Freq:15 @ 2.52MHz
Frequency - Self Resonant:7MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:1 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.386" L x 0.386" W (9.80mm x 9.80mm)
Height - Seated (Max):0.228" (5.80mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

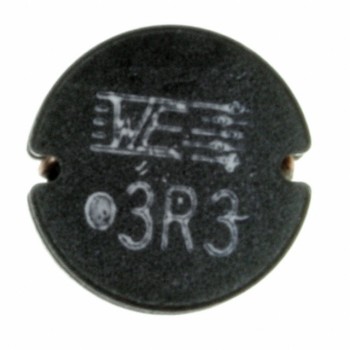

HOT 744776033A

744776033A

FIXED IND 3.3UH 5A 20 MOHM SMD
HOT 0402HS-560EKTS

0402HS-560EKTS

FIXED IND 56NH 100MA 970MOHM SMD

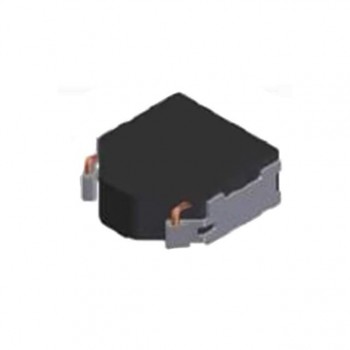

HOT FDSD0630-H-1R5N=P3
