PM2120-180K-RC

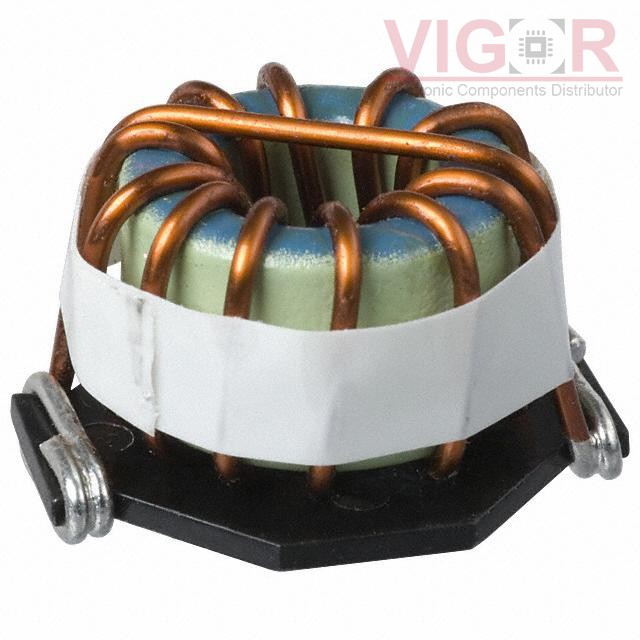

Image is for reference,
please contact us to get the real picture

Part No :: PM2120-180K-RC

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 18UH 11.8A 9 MOHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 04 - Aug 08 2025

DataSheet: PM2120-180K-RC PDF

Availability: 78 pieces

Unit Price: ~~$3.15000~~

Current price of PM2120-180K-RC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PM2120-180K-RC Specifications

Type	Description
Series:	PM2120
Package:	Bulk
Part Status:	Active
Type:	Toroidal
Material - Core:	Iron
Inductance:	18 µH
Tolerance:	±10%
Current Rating (Amps):	11.8 A
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	9mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-55°C ~ 105°C
Inductance Frequency - Test:	1 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	1.201" L x 1.000" W (30.50mm x 25.40mm)
Height - Seated (Max):	0.820" (20.83mm)
