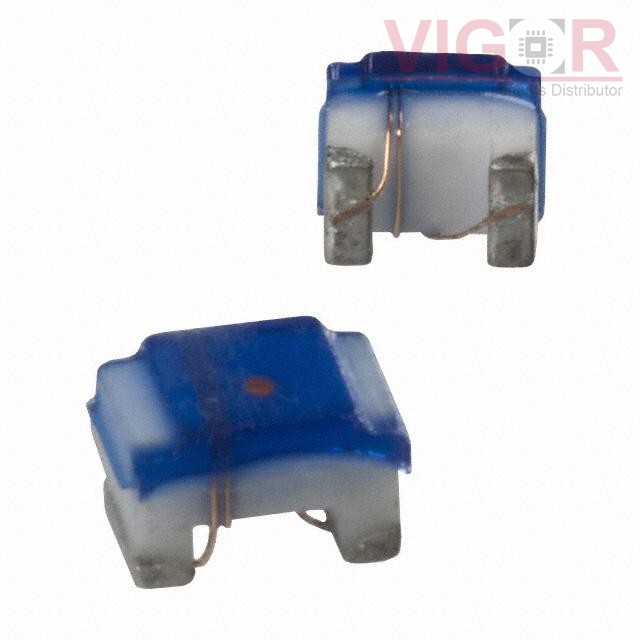

PM0805-18NM-RC

PM0805-18NM-RC

Image is for reference,
please contact us to get the real picture

Part No :

PM0805-18NM-RC

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 18NH 600MA 80 MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 10 - Aug 14 2025
DataSheet
PM0805-18NM-RC PDF
Availability
0 pieces
Unit Price
$0.14400

Current price of PM0805-18NM-RC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PM0805-18NM-RC Specifications
Type Description
Series:PM0805
Package:Tape & Reel (TR)
Part Status:Active
Type:Wirewound
Material - Core:Alumina
Inductance:18 nH
Tolerance:±20%
Current Rating (Amps):600 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):80mOhm
Q @ Freq:60 @ 500MHz
Frequency - Self Resonant:3.4GHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:250 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:0805 (2012 Metric)
Supplier Device Package:0805 (2012 Metric)
Size / Dimension:0.083" L x 0.059" W (2.10mm x 1.50mm)
Height - Seated (Max):0.059" (1.50mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT MLF1608A2R2JTD25

MLF1608A2R2JTD25

FIXED IND 2.2UH 30MA 1 OHM SMD

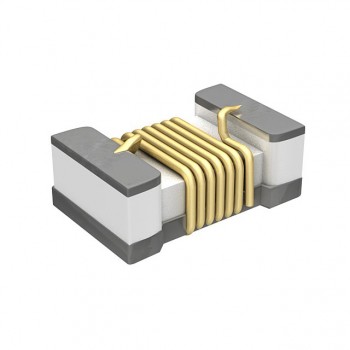

HOT LQW04AN4N7C00D

LQW04AN4N7C00D

FIXED IND 4.7NH 440MA 140 MOHM

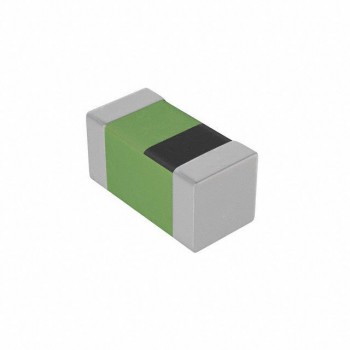

HOT LQG15HS82NJ02D
