784774122

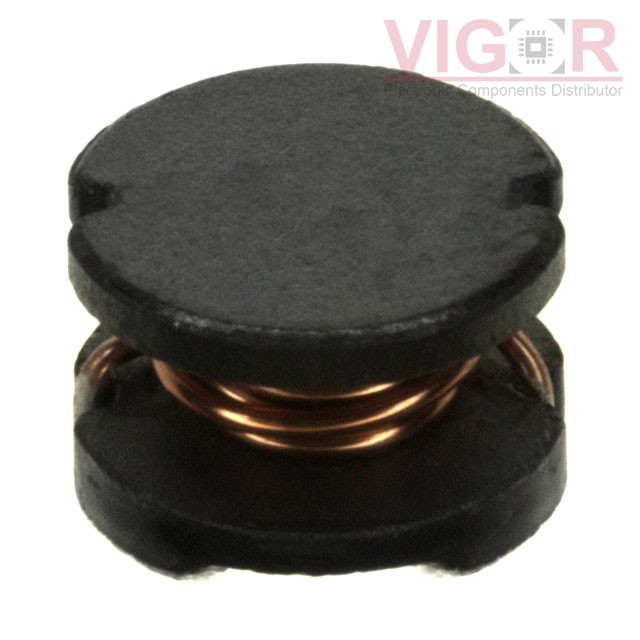

Image is for reference,
please contact us to get the real picture

Part No :: 784774122

Manufacturer: Würth Elektronik Midcom

Description: FIXED IND 22UH 1.28A 180 MOHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 29 - Aug 02 2025

DataSheet: 784774122 PDF

Availability: 0 pieces

Unit Price: ~~$1.12000~~

Current price of 784774122 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

784774122 Specifications

Type	Description
Series:	WE-PD2A
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	22 µH
Tolerance:	±20%
Current Rating (Amps):	1.28 A
Current - Saturation (Isat):	1.53A
Shielding:	Unshielded
DC Resistance (DCR):	180mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	16MHz
Ratings:	AEC-Q200
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	10 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	5848
Size / Dimension:	0.228" L x 0.205" W (5.80mm x 5.20mm)
Height - Seated (Max):	0.191" (4.85mm)
