CIG22B2R2MAE

CIG22B2R2MAE

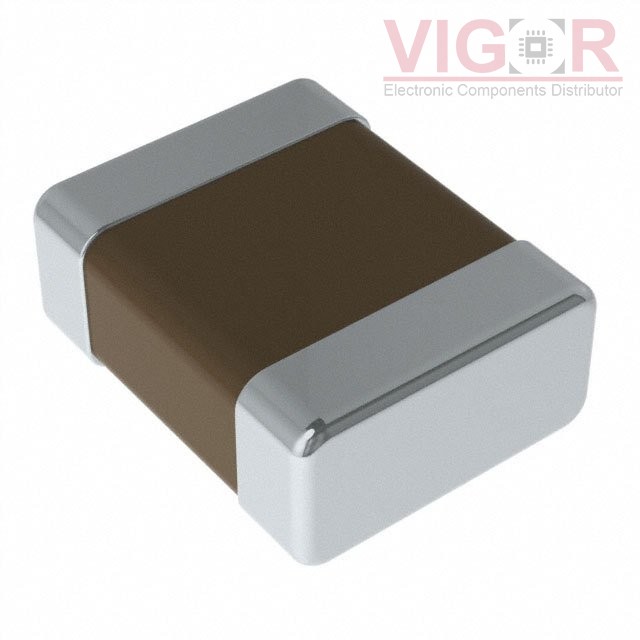

Image is for reference,
please contact us to get the real picture

Part No :

CIG22B2R2MAE

Manufacturer
Samsung Electro-Mechanics
Description
FIXED IND 2.2UH 1.1A 190 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 16 - Jul 20 2025
DataSheet
CIG22B2R2MAE PDF
Availability
0 pieces
Unit Price
$0.05000

Current price of CIG22B2R2MAE is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CIG22B2R2MAE Specifications
Type Description
Series:CIG22B_MAE
Package:Tape & Reel (TR)
Part Status:Obsolete
Type:Multilayer
Material - Core:-
Inductance:2.2 µH
Tolerance:±20%
Current Rating (Amps):1.1 A
Current - Saturation (Isat):-
Shielding:Shielded
DC Resistance (DCR):190mOhm
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:1 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:1008 (2520 Metric)
Supplier Device Package:1008 (2520 Metric)
Size / Dimension:0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max):0.031" (0.80mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT MLF1005VR33JTD25

MLF1005VR33JTD25

FIXED IND 330NH 140MA 1.05 OHM
HOT LBM2016T220J

LBM2016T220J

FIXED IND 22UH 140MA 2.8 OHM SMD

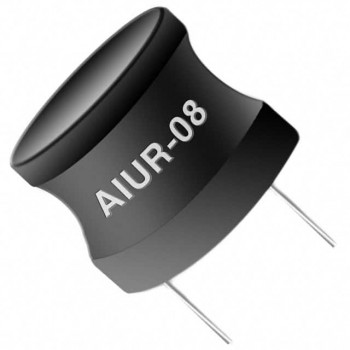

HOT AIUR-08-180K
