PM4546.223NLT

PM4546.223NLT

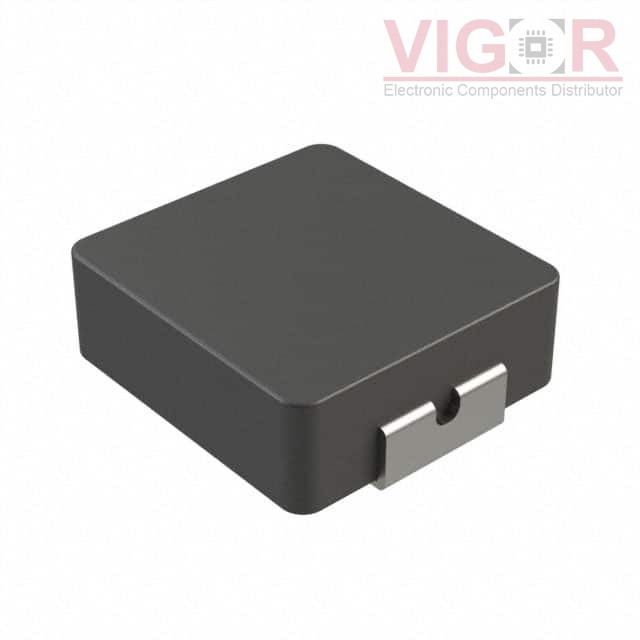

Image is for reference,
please contact us to get the real picture

Part No :

PM4546.223NLT

Manufacturer
PulseLarsen Antenna
Description
FIXED IND 22UH 800MA 1.05 OHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 16 - Aug 20 2025
DataSheet
PM4546.223NLT PDF
Availability
7983 pieces
Unit Price
$1.62000

Current price of PM4546.223NLT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PM4546.223NLT Specifications
Type Description
Series:PM4546.XXXNLT
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Molded
Material - Core:-
Inductance:22 µH
Tolerance:±20%
Current Rating (Amps):800 mA
Current - Saturation (Isat):1A
Shielding:Unshielded
DC Resistance (DCR):1.05Ohm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:AEC-Q200
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.175" L x 0.160" W (4.45mm x 4.06mm)
Height - Seated (Max):0.047" (1.20mm)
