MPXV1D2213L220

MPXV1D2213L220

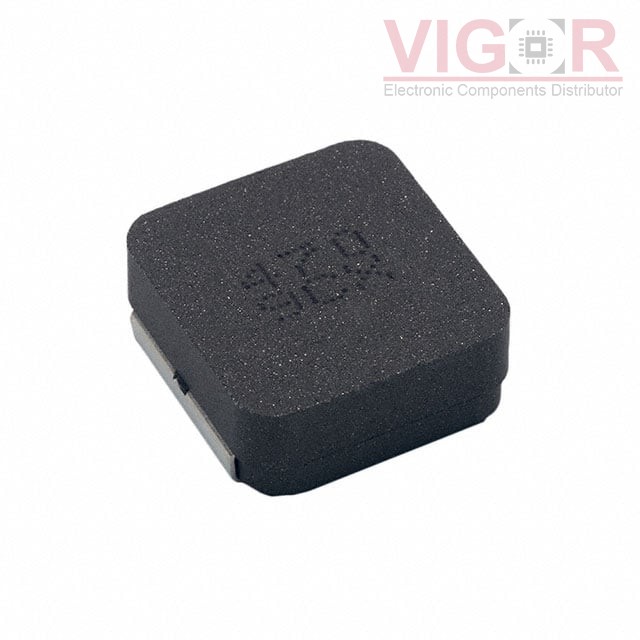

Image is for reference,
please contact us to get the real picture

Part No :

MPXV1D2213L220

Manufacturer
KEMET
Description
FIXED IND 22UH 19.5A 13.2 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 05 - Aug 09 2025
DataSheet
MPXV1D2213L220 PDF
Availability
85 pieces
Unit Price
$13.34000

Current price of MPXV1D2213L220 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MPXV1D2213L220 Specifications
Type Description
Series:MPXV
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:-
Material - Core:Metal Composite
Inductance:22 µH
Tolerance:±20%
Current Rating (Amps):19.5 A
Current - Saturation (Isat):20.5A
Shielding:Shielded
DC Resistance (DCR):13.2mOhm Max
Q @ Freq:-
Frequency - Self Resonant:3.7MHz
Ratings:AEC-Q200
Operating Temperature:-55°C ~ 155°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.886" L x 0.866" W (22.50mm x 22.00mm)
Height - Seated (Max):0.512" (13.00mm)
