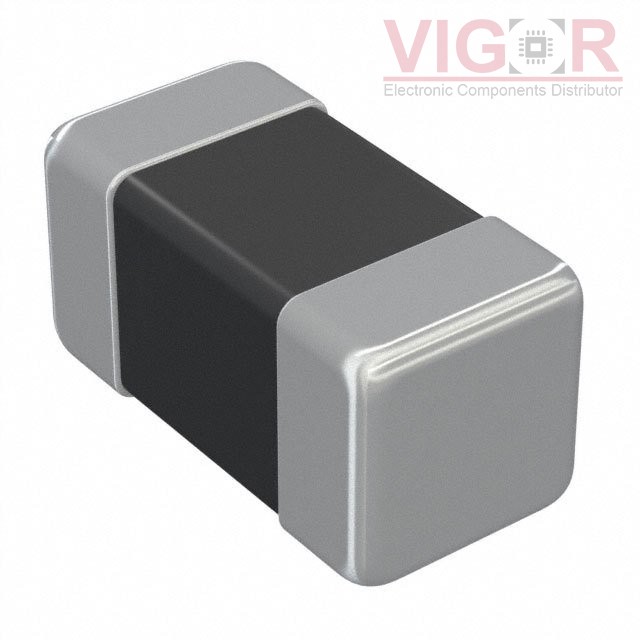

LK1005R22K-TV

Image is for reference,
please contact us to get the real picture

Part No :: LK1005R22K-TV

Manufacturer: TAIYO YUDEN

Description: FIXED IND 220NH 25MA 790 MOHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 27 - Jul 31 2025

DataSheet: LK1005R22K-TV PDF

Availability: 0 pieces

Unit Price: ~~$0.03968~~

Current price of LK1005R22K-TV is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LK1005R22K-TV Specifications

Type	Description
Series:	LK
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Multilayer
Material - Core:	-
Inductance:	220 nH
Tolerance:	±10%
Current Rating (Amps):	25 mA
Current - Saturation (Isat):	-
Shielding:	Shielded
DC Resistance (DCR):	790mOhm
Q @ Freq:	10 @ 25MHz
Frequency - Self Resonant:	135MHz
Ratings:	AEC-Q200
Operating Temperature:	-40°C ~ 85°C
Inductance Frequency - Test:	25 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0402 (1005 Metric)
Supplier Device Package:	0402 (1005 Metric)
Size / Dimension:	0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max):	0.022" (0.55mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

ML05KT5R6

FIXED IND 5.6UH 15MA 900 MOHM

HOT

5800-392-RC

FIXED IND 3.9MH 120MA 9.7 OHM TH

HOT

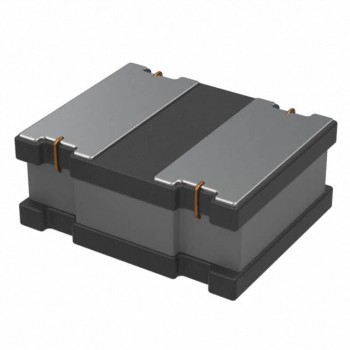

SDEM25201T-220MS
