WL05JTR75

WL05JTR75

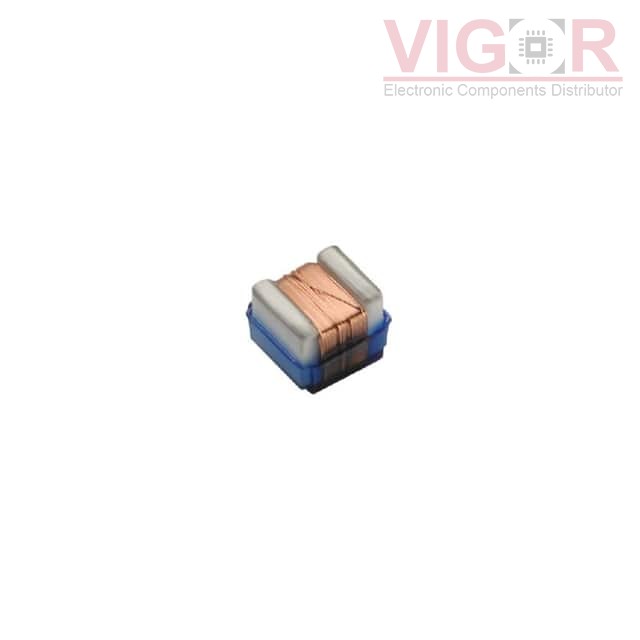

Image is for reference,
please contact us to get the real picture

Part No :

WL05JTR75

Manufacturer
Viking Tech
Description
FIXED IND 750NH 180MA 2.3OHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 18 - Jul 22 2025
DataSheet
WL05JTR75 PDF
Availability
10000 pieces
Unit Price
$0.04500

Current price of WL05JTR75 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

WL05JTR75 Specifications
Type Description
Series:WL
Package:Tape & Reel (TR)
Part Status:Active
Type:Wirewound
Material - Core:Ceramic
Inductance:750 nH
Tolerance:±5%
Current Rating (Amps):180 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):2.3Ohm Max
Q @ Freq:23 @ 50MHz
Frequency - Self Resonant:200MHz
Ratings:AEC-Q200
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:25 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:0805 (2012 Metric)
Supplier Device Package:0805
Size / Dimension:0.090" L x 0.068" W (2.29mm x 1.73mm)
Height - Seated (Max):0.060" (1.52mm)
