36401E27NGTDF

36401E27NGTDF

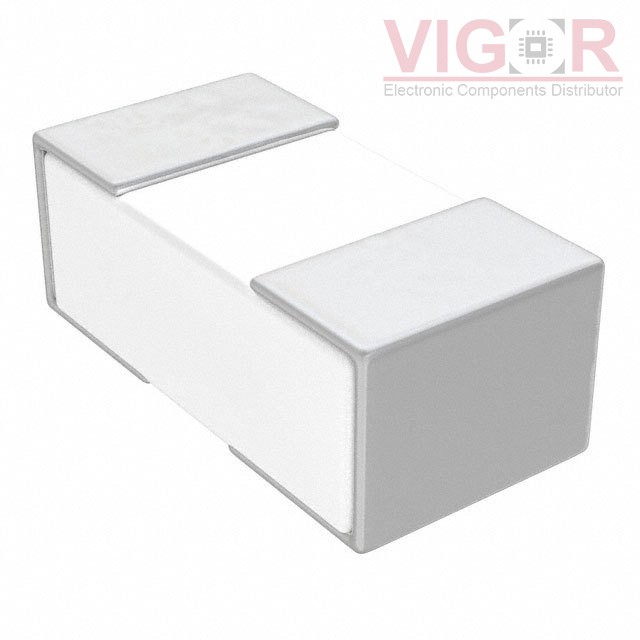

Image is for reference,
please contact us to get the real picture

Part No :

36401E27NGTDF

Manufacturer
TE Connectivity AMP Connectors
Description
FIXED IND 27NH 75MA 3.25 OHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 05 - Aug 09 2025
DataSheet
36401E27NGTDF PDF
Availability
960 pieces
Unit Price
$0.19000

Current price of 36401E27NGTDF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

36401E27NGTDF Specifications
Type Description
Series:3640, Sigma Inductors
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Thin Film
Material - Core:-
Inductance:27 nH
Tolerance:±2%
Current Rating (Amps):75 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):3.25Ohm Max
Q @ Freq:13 @ 500MHz
Frequency - Self Resonant:2.5GHz
Ratings:-
Operating Temperature:-
Inductance Frequency - Test:500 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:0402 (1005 Metric)
Supplier Device Package:0402 (1005 Metric)
Size / Dimension:0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max):0.015" (0.37mm)
