DC780R-564K

DC780R-564K

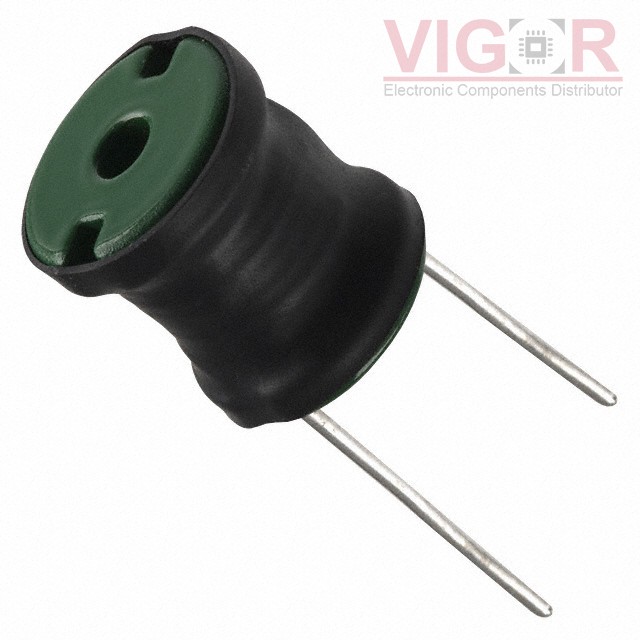

Image is for reference,
please contact us to get the real picture

Part No :

DC780R-564K

Manufacturer
API Delevan
Description
FIXED IND 560UH 1.6A 388 MOHM TH
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 30 - Aug 03 2025
DataSheet
DC780R-564K PDF
Availability
0 pieces
Unit Price
$4.54800

Current price of DC780R-564K is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DC780R-564K Specifications
Type Description
Series:DC780R
Package:Bulk
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:560 µH
Tolerance:±10%
Current Rating (Amps):1.6 A
Current - Saturation (Isat):4.6A
Shielding:Unshielded
DC Resistance (DCR):388mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:1 kHz
Features:-
Mounting Type:Through Hole
Package / Case:Radial, Vertical Cylinder
Supplier Device Package:-
Size / Dimension:0.772" Dia (19.60mm)
Height - Seated (Max):0.831" (21.10mm)
