LGJ7045TS-470MR90-H

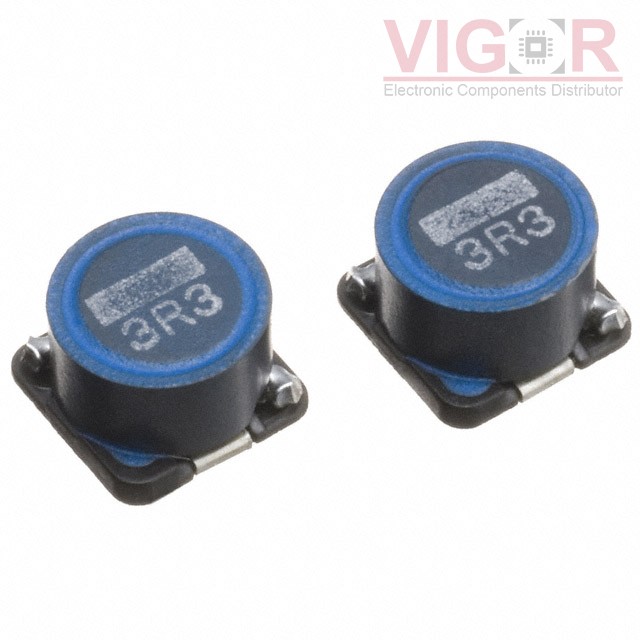

Image is for reference,
please contact us to get the real picture

Part No :: LGJ7045TS-470MR90-H

Manufacturer: TDK Corporation

Description: FIXED IND 47UH 930MA 180 MOHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 04 - Aug 08 2025

DataSheet: LGJ7045TS-470MR90-H PDF

Availability: 695 pieces

Unit Price: ~~$3.21000~~

Current price of LGJ7045TS-470MR90-H is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LGJ7045TS-470MR90-H Specifications

Type	Description
Series:	LGJ
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	47 µH
Tolerance:	±20%
Current Rating (Amps):	930 mA
Current - Saturation (Isat):	900mA
Shielding:	Shielded
DC Resistance (DCR):	180mOhm
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	AEC-Q200
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max):	0.189" (4.80mm)
