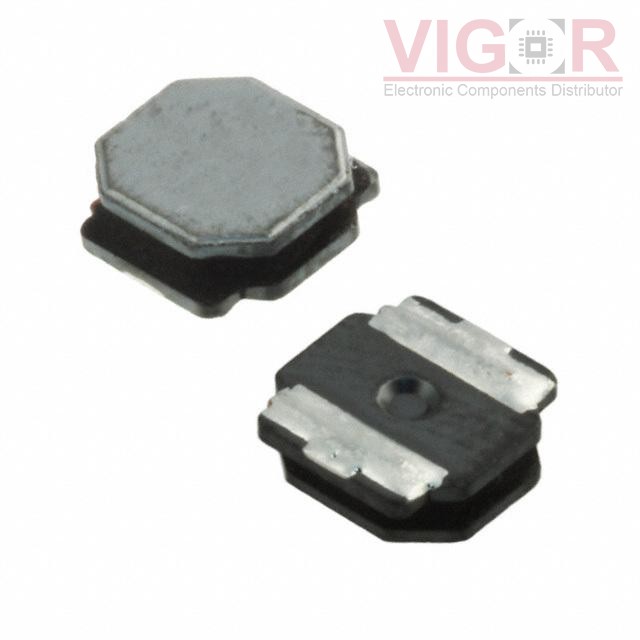

NRS5010T220MMGF

NRS5010T220MMGF

Image is for reference,
please contact us to get the real picture

Part No :

NRS5010T220MMGF

Manufacturer
TAIYO YUDEN
Description
FIXED IND 22UH 560MA 720 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 06 - Aug 10 2025
DataSheet
NRS5010T220MMGF PDF
Availability
398 pieces
Unit Price
$0.28000

Current price of NRS5010T220MMGF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NRS5010T220MMGF Specifications
Type Description
Series:NR, S Type
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:22 µH
Tolerance:±20%
Current Rating (Amps):560 mA
Current - Saturation (Isat):550mA
Shielding:Unshielded
DC Resistance (DCR):720mOhm Max
Q @ Freq:-
Frequency - Self Resonant:15MHz
Ratings:-
Operating Temperature:-25°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.193" L x 0.193" W (4.90mm x 4.90mm)
Height - Seated (Max):0.039" (1.00mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

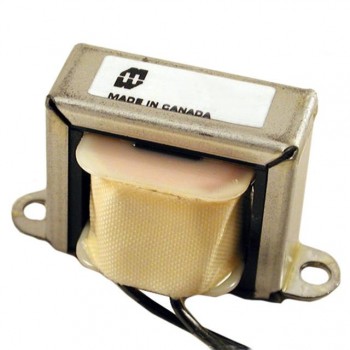

HOT 157H

157H

FIXED IND 10H 50MA 408 OHM CHASS

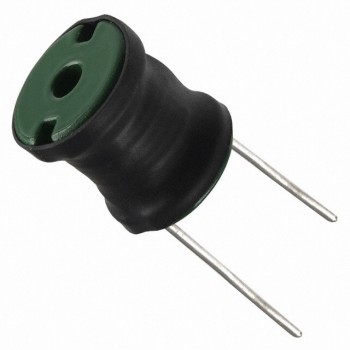

HOT DC780-223K

DC780-223K

FIXED IND 22UH 7.2A 19 MOHM TH

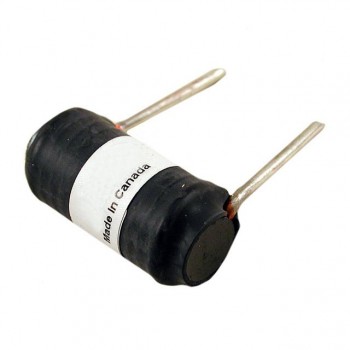

HOT 1538M11
