IMC1210AN2R2K

IMC1210AN2R2K

Image is for reference,
please contact us to get the real picture

Part No :

IMC1210AN2R2K

Manufacturer
Vishay / Dale
Description
FIXED IND 2.2UH 320MA 1 OHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 01 - Aug 05 2025
DataSheet
IMC1210AN2R2K PDF
Availability
0 pieces
Unit Price
$0.39780

Current price of IMC1210AN2R2K is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IMC1210AN2R2K Specifications
Type Description
Series:IMC-1210
Package:Tape & Reel (TR)
Part Status:Active
Type:Wirewound
Material - Core:Iron Powder
Inductance:2.2 µH
Tolerance:±10%
Current Rating (Amps):320 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):1Ohm Max
Q @ Freq:30 @ 7.96MHz
Frequency - Self Resonant:75MHz
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:7.96 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:1210 (3225 Metric)
Supplier Device Package:1210
Size / Dimension:0.126" L x 0.098" W (3.20mm x 2.49mm)
Height - Seated (Max):0.095" (2.41mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT MLF1005GR47JT

MLF1005GR47JT

FIXED IND 470NH 50MA 420 MOHM

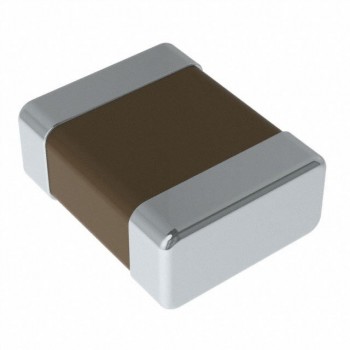

HOT CIG22B4R7MNE

CIG22B4R7MNE

FIXED IND 4.7UH 1A 250 MOHM SMD

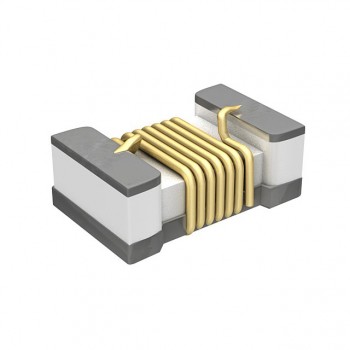

HOT LQW04AN2N7D00D
