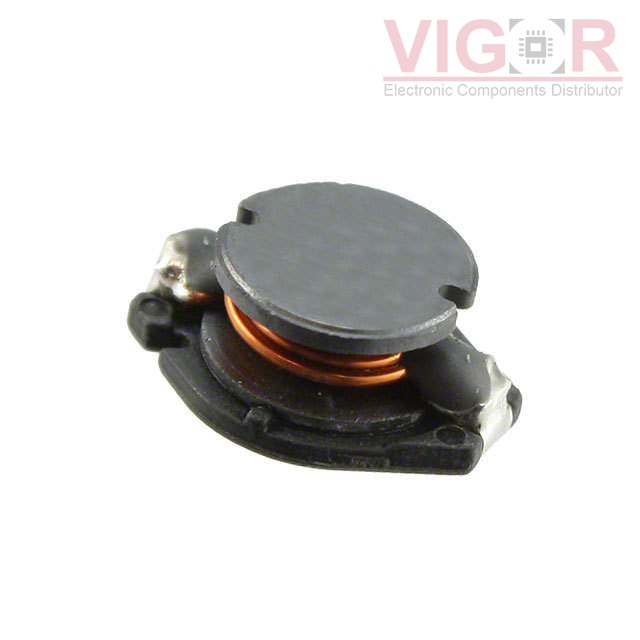

SDR1005-103KL

Image is for reference,
please contact us to get the real picture

Part No :: SDR1005-103KL

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 10MH 100MA 39 OHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 04 - Aug 08 2025

DataSheet: SDR1005-103KL PDF

Availability: 836 pieces

Unit Price: ~~$0.84000~~

Current price of SDR1005-103KL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SDR1005-103KL Specifications

Type	Description
Series:	SDR1005
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	10 mH
Tolerance:	±10%
Current Rating (Amps):	100 mA
Current - Saturation (Isat):	110mA
Shielding:	Unshielded
DC Resistance (DCR):	39Ohm Max
Q @ Freq:	102 @ 138kHz
Frequency - Self Resonant:	1MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	1 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.500" L x 0.394" W (12.70mm x 10.00mm)
Height - Seated (Max):	0.197" (5.00mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

P1166.333NLT

FIXED IND 33UH 940MA 205 MOHM

HOT

54062703400

FIXED IND 27NH 500MA 115 MOHM

HOT

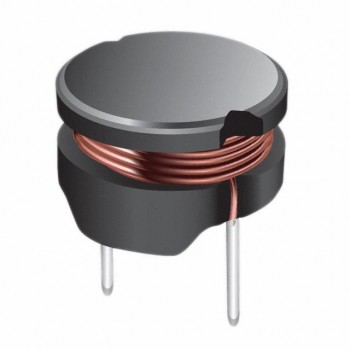

RL855-822K-RC
