ELJ-PA560KF

ELJ-PA560KF

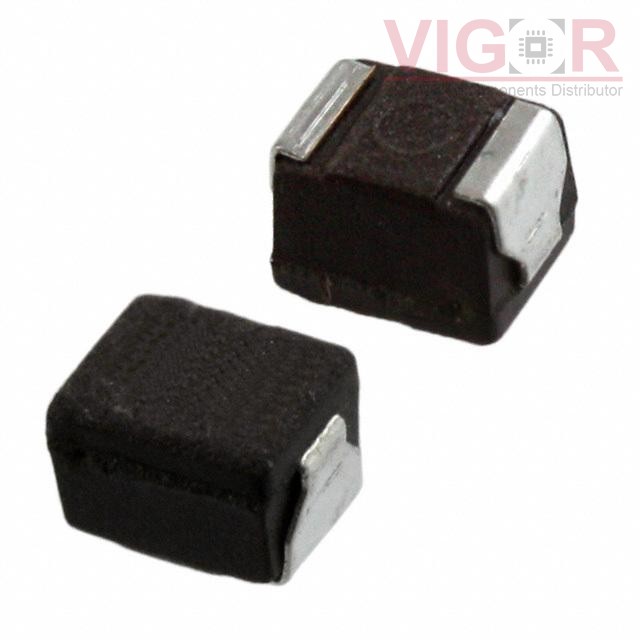

Image is for reference,
please contact us to get the real picture

Part No :

ELJ-PA560KF

Manufacturer
Panasonic
Description
FIXED IND 56UH 110MA 3.3 OHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 31 - Aug 04 2025
DataSheet
ELJ-PA560KF PDF
Availability
1214 pieces
Unit Price
$0.26000

Current price of ELJ-PA560KF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ELJ-PA560KF Specifications
Type Description
Series:PA
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Type:Wirewound
Material - Core:Ferrite
Inductance:56 µH
Tolerance:±10%
Current Rating (Amps):110 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):3.3Ohm Max
Q @ Freq:15 @ 2.52MHz
Frequency - Self Resonant:8.5MHz
Ratings:-
Operating Temperature:-20°C ~ 85°C
Inductance Frequency - Test:2.52 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:1210 (3225 Metric)
Supplier Device Package:-
Size / Dimension:0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max):0.094" (2.40mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT MGV05126R8M-10

MGV05126R8M-10

FIXED IND 6.8UH 2A 222MOHM SMD
HOT 0805CS-150EJTS

0805CS-150EJTS

FIXED IND 15NH 600MA 170 MOHM

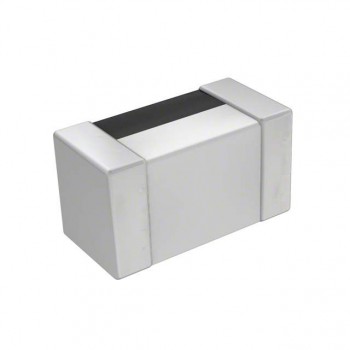

HOT MLG0402Q4N7HT000
