5022R-114H

5022R-114H

Image is for reference,
please contact us to get the real picture

Part No :

5022R-114H

Manufacturer
API Delevan
Description
FIXED IND 110UH 262MA 4.9 OHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 05 - Aug 09 2025
DataSheet
5022R-114H PDF
Availability
0 pieces
Unit Price
$3.09063

Current price of 5022R-114H is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

5022R-114H Specifications
Type Description
Series:5022R
Package:Tape & Reel (TR)
Part Status:Active
Type:-
Material - Core:Iron
Inductance:110 µH
Tolerance:±3%
Current Rating (Amps):262 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):4.9Ohm Max
Q @ Freq:60 @ 790kHz
Frequency - Self Resonant:8.9MHz
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:790 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.520" L x 0.250" W (13.21mm x 6.35mm)
Height - Seated (Max):0.230" (5.84mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT LQW15AWR18H80D

LQW15AWR18H80D

FIXED IND 180NH 260MA 2.2 OHM
HOT AX97-30471

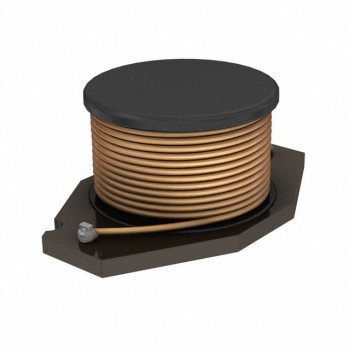

AX97-30471

FIXED IND 470UH 500MA 1.5 OHM
HOT NLV25T-R47J-PF

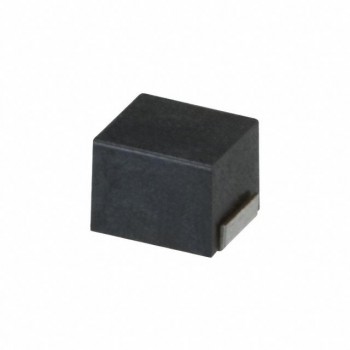

NLV25T-R47J-PF
