NLV32T-560J-EFD

NLV32T-560J-EFD

Image is for reference,
please contact us to get the real picture

Part No :

NLV32T-560J-EFD

Manufacturer
TDK Corporation
Description
FIXED IND 56UH 55MA 8 OHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
NLV32T-560J-EFD PDF
Availability
57 pieces
Unit Price
$0.32000

Current price of NLV32T-560J-EFD is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NLV32T-560J-EFD Specifications
Type Description
Series:NLV-EFD
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:56 µH
Tolerance:±5%
Current Rating (Amps):55 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):8Ohm Max
Q @ Freq:30 @ 2.52MHz
Frequency - Self Resonant:13MHz
Ratings:AEC-Q200
Operating Temperature:-40°C ~ 105°C
Inductance Frequency - Test:2.52 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:1210 (3225 Metric)
Supplier Device Package:1210
Size / Dimension:0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max):0.094" (2.40mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT HLQ021R5BTTR

HLQ021R5BTTR

FIXED IND 1.5NH 330MA 150 MOHM
HOT LHL10NB680K

LHL10NB680K

FIXED IND 68UH 1.5A 120 MOHM TH

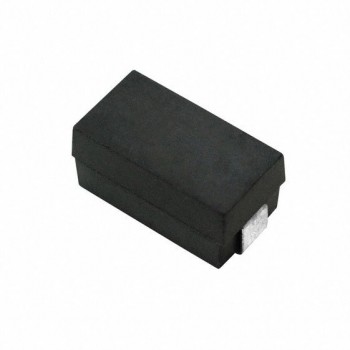

HOT P3519R-183K
