PM5022S-221M-RC

PM5022S-221M-RC

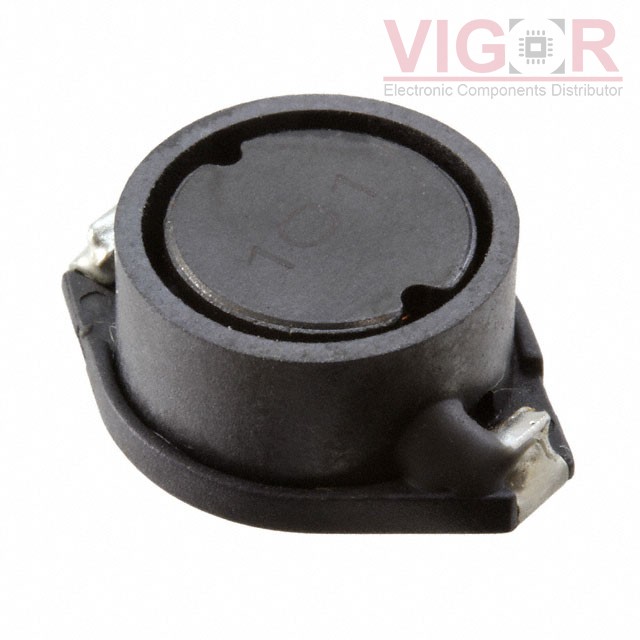

Image is for reference,
please contact us to get the real picture

Part No :

PM5022S-221M-RC

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 220UH 1A 510 MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 09 - Aug 13 2025
DataSheet
PM5022S-221M-RC PDF
Availability
0 pieces
Unit Price
$0.46500

Current price of PM5022S-221M-RC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PM5022S-221M-RC Specifications
Type Description
Series:PM5022S
Package:Tape & Reel (TR)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:220 µH
Tolerance:±20%
Current Rating (Amps):1 A
Current - Saturation (Isat):1.9A
Shielding:Shielded
DC Resistance (DCR):510mOhm
Q @ Freq:29 @ 796kHz
Frequency - Self Resonant:3.5MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.720" L x 0.551" W (18.30mm x 14.00mm)
Height - Seated (Max):0.280" (7.10mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT LQP02TN2N3C02D

LQP02TN2N3C02D

FIXED IND 2.3NH 200MA 750 MOHM
HOT MHQ1005P3N9ST

MHQ1005P3N9ST

FIXED IND 3.9NH 900MA 90 MOHM

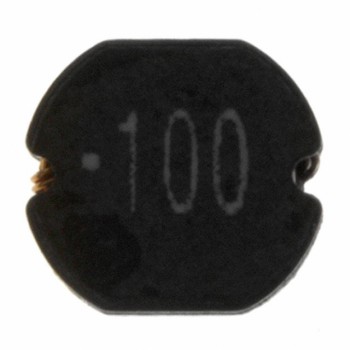

HOT 7447745100
