B82432C1564K000

B82432C1564K000

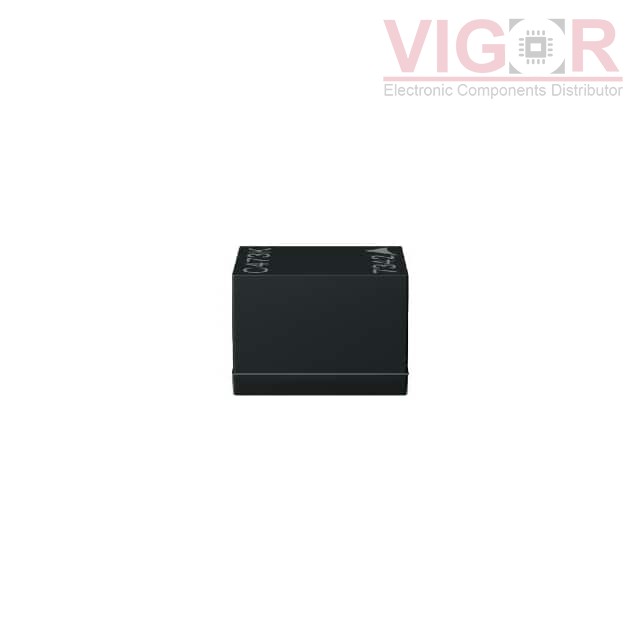

Image is for reference,
please contact us to get the real picture

Part No :

B82432C1564K000

Manufacturer
TDK EPCOS
Description
FIXED IND 560UH 70MA 23 OHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 30 - Aug 03 2025
DataSheet
B82432C1564K000 PDF
Availability
0 pieces
Unit Price
$0.43808

Current price of B82432C1564K000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B82432C1564K000 Specifications
Type Description
Series:SIMID
Package:Tape & Reel (TR)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:560 µH
Tolerance:±10%
Current Rating (Amps):70 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):23Ohm Max
Q @ Freq:30 @ 796kHz
Frequency - Self Resonant:3.5MHz
Ratings:AEC-Q200
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:2-SMD, J-Lead
Supplier Device Package:1812 (4532 Metric)
Size / Dimension:0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max):0.134" (3.40mm)
