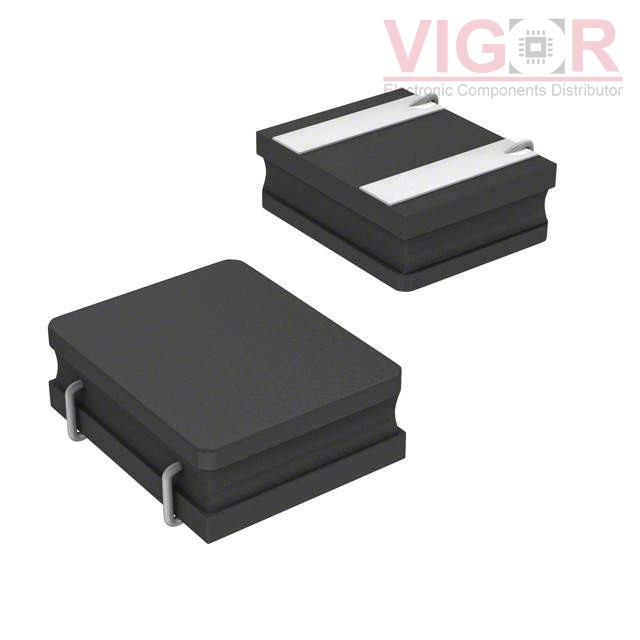

LQH2HPN220MJRL

LQH2HPN220MJRL

Image is for reference,
please contact us to get the real picture

Part No :

LQH2HPN220MJRL

Manufacturer
TOKO / Murata
Description
FIXED IND 22UH 320MA 1 OHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 02 - Aug 06 2025
DataSheet
LQH2HPN220MJRL PDF
Availability
1634 pieces
Unit Price
$0.43000

Current price of LQH2HPN220MJRL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LQH2HPN220MJRL Specifications
Type Description
Series:LQH2
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:22 µH
Tolerance:±20%
Current Rating (Amps):320 mA
Current - Saturation (Isat):530mA
Shielding:Shielded
DC Resistance (DCR):1Ohm Max
Q @ Freq:-
Frequency - Self Resonant:20MHz
Ratings:-
Operating Temperature:-40°C ~ 105°C
Inductance Frequency - Test:1 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:1008 (2520 Metric)
Supplier Device Package:1008 (2520 Metric)
Size / Dimension:0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max):0.039" (1.00mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT LQG15WH39NH02D

LQG15WH39NH02D

FIXED IND 39NH 190MA 1.5 OHM SMD
HOT MHQ0402PSA1N6CT000

MHQ0402PSA1N6CT000

FIXED IND 1.6NH 400MA 300 MOHM

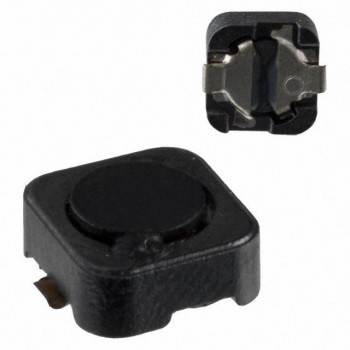

HOT SPD62R-122M
