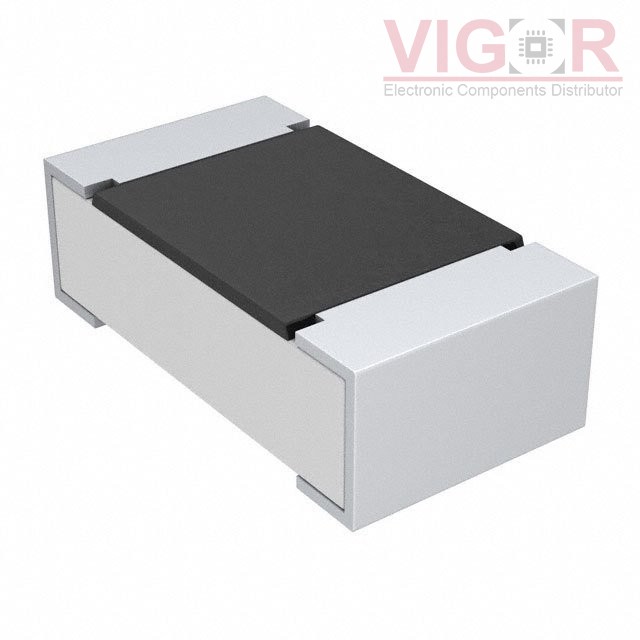

IMC0603ER56NG01

Image is for reference,
please contact us to get the real picture

Part No :: IMC0603ER56NG01

Manufacturer: Vishay / Dale

Description: FIXED IND 56NH 600MA 310 MOHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 29 - Aug 02 2025

DataSheet: IMC0603ER56NG01 PDF

Availability: 0 pieces

Unit Price: ~~$0.13770~~

Current price of IMC0603ER56NG01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IMC0603ER56NG01 Specifications

Type	Description
Series:	IMC-0603-01
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Wirewound
Material - Core:	-
Inductance:	56 nH
Tolerance:	±2%
Current Rating (Amps):	600 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	310mOhm Max
Q @ Freq:	40 @ 200MHz
Frequency - Self Resonant:	1.9GHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	200 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0603 (1608 Metric)
Supplier Device Package:	0603 (1608 Metric)
Size / Dimension:	0.063" L x 0.041" W (1.60mm x 1.05mm)
Height - Seated (Max):	0.049" (1.25mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

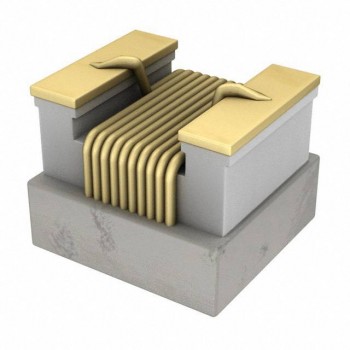

AISC-1008F-8R2G-T

FIXED IND 8.2UH 330MA 3.3 OHM

HOT

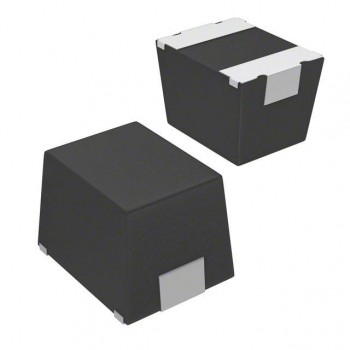

ISC1210BN1R5J

FIXED IND 1.5UH 370MA 750 MOHM

HOT

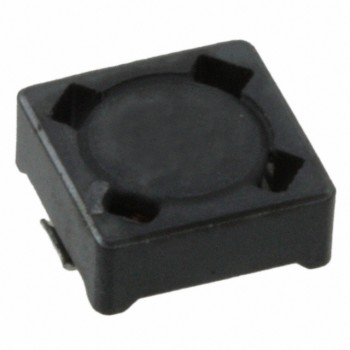

P1166.153NLT
